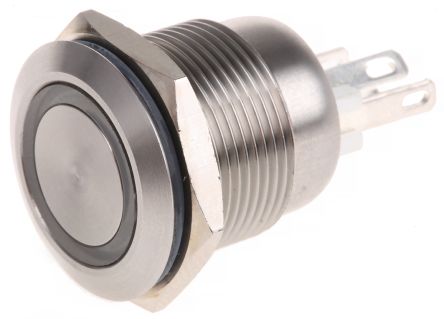

点击放大查看
MPI002/28/WH
| 制造商 | |
| 描述 | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,ring white,IP66 Switch Push Button ON OFF SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount SWITCH, VR, ILLUM, WHITE Switch,RingIlluminated;White;SPPushtoMake;50mA;24VDCMax;2.8mmSolderTabs Bulgin IP66 银色 SP - 常开 面板安装 瞬间 照明 按钮开关, 50 mA@ 24 V 直流 |
| 分类 |
商业参数
| 其他名称 | Q6324857 | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85365080 |
电气参数
| 电路 | SPST-NO | 电流 | :20mA |
| 操作方式 | PushtoMake | 所用LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. |
| 额定电压 | 24V | 极数 | 1 |
| 开关功能 | Off-Mom | 接触电阻 | :100mohm |
| 介电强度 | >2kV(ContacttoPanel),1500V(ContacttoContact) | LED正向电压 | :3.6V |
| 最大额定电流 | 50mA (DC) | 最大触点电流 | :50mA |
| 绝缘电阻 | :1000Mohm | 开关功能/额定值 | Momentary |
| 触点额定电流 | 50 mA | 连接器类型 - 电压输入 | :Connector |
| 供电电压 (Vcc/Vdd) | :24V | 标称照明电压 | 3.6 VDC |
| 直流正向电流（If）（最大） | :20mA | ||
机械参数
| 深度 | :30.3mm | 长度 | :31mm |
| 重量 | 0.25 | 直径 | :22mm |
| LED颜色 | White | 包装方式 | Bulk |
| 封装体颜色 | Silver | 端接方式 | SolderLugs |
| 致动器类型 | Button | 安装类型 | Panel Mount |
| 端子类型 | Tab | 执行器颜色 | Silver |
| 安装样式 | Panel | 操作力 | :12N |
| 触头材料 | Gold Plated | 端接样式 | Quick Connect - 0.110" (2.8mm) |
| 连接器颜色 | :White | 照明颜色 | :White |
| 面板开孔形状 | 19.2mm | 位数 | :35000 |
| 按钮/帽颜色 | :Chrome | 安装孔直径 | 19.2mm |
| 典型触点布局 | SP-NO | 面板开孔尺寸（外形） | 19.2mm |
| 照明类型及颜色 | LED, White | ||
产品信息
| 类型 | Vandal Resistant, Illuminated | 系列 | :MPI002 |
| 产品特性 | Stainless Steel | 照明类型 | Yes |
| 电气寿命 | 35,000 Cycles | ||
环境参数
| 密封等级 | IP66 | 机械寿命 | 750,000 Cycles |
| NEMA 机架尺寸 | :IP66 | 开关次数 | :750000 |
| 防护等级 | IP66 - Dust Tight, Water Resistant | 工作温度 | +70°C |
| 光通量 @ 电流/温度 | :900mcd | ||
