点击放大查看

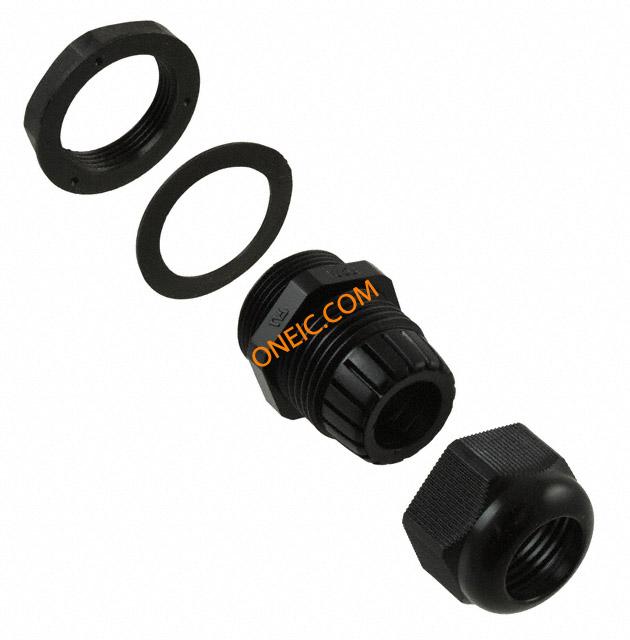

NG-9516
| 制造商 | |
| 描述 | Cable Mounting & Accessories NEMA Gland .51-.71 CABLE GLAND NEMA 4X PG-21 BLACK Gland; Cable; 0.512 to 0.709 in.; PG 21; 1.102 in.; Nylon; NBR (N) Rubber Cable Accessories Gland Nylon 66 Black CABLE GLAND (CLAMP) Gland,Cable;0.512to0.709in.;PG21;1.102in.;Nylon;NBR(N)Rubber |
| 分类 |
商业参数
| 交货时间 | 42 Days | 子类别 | Cable Accessories |
| 产品类别 | Cable Mounting & Accessories | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准 | ULListed |
| 海关税号 | 39173235 | 防护类型 | IP68Rating |
| 材料阻燃等级 | UL94-V2Rating | ||
电气参数
| 钳位电压 | 0.512to0.709in. | ||
机械参数
| 颜色 | Black | 长度 | 1.583" |
| 重量 | 0.023 | 直径 | 1.102in. |
| 材料（通用） | Nylon | 螺纹尺寸 | PG21 |
| 安装类型 | Cable | 电缆直径 | 0.51" ~ 0.67" (13.0mm ~ 17.0mm) |
| 线束直径 | 17 mm | 本体材料 | Nylon |
| 总长度 | 1.583in. | 内径（直径） | 0.681" |
| 绝缘材料 - 材质 | NBR(N)Rubber | 螺纹/螺钉/孔尺寸 | :- |
| 外壳与棱镜材料 | :Nylon 6.6 | ||
产品信息

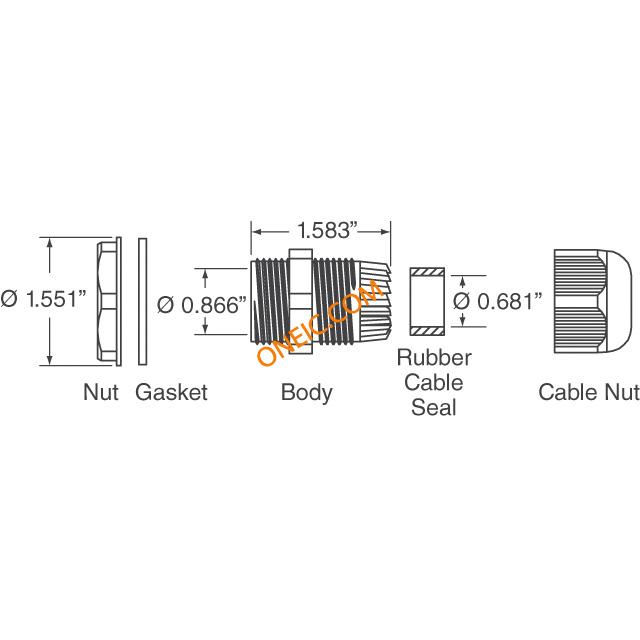

| 类型 | Cable Gland | 包含附件 | Nut, Gasket, Seal |
| 附件类型 | :Cable Gland | 应用细节 | Alltypesofmachinery&equipment,includingautomation,motioncontrolandrobotics |
环境参数
| NEMA 机架尺寸 | :NEMA 4X | 工作温度 | -40to+100°C |
文档与媒体
相关型号
NBB-15247
Bud Industries
Enclosures, Boxes, & Cases 15.68 x 11.73 x 6.3 Outdoor BOX PBT/PC 15.68X11.73X6.30" GRY Large Non-Metallic Enclosure , Solid Cover ENCLOSURE, BOX, POLYCARBONATE, GRAY NEMABOXB;OUTDOORSOLID

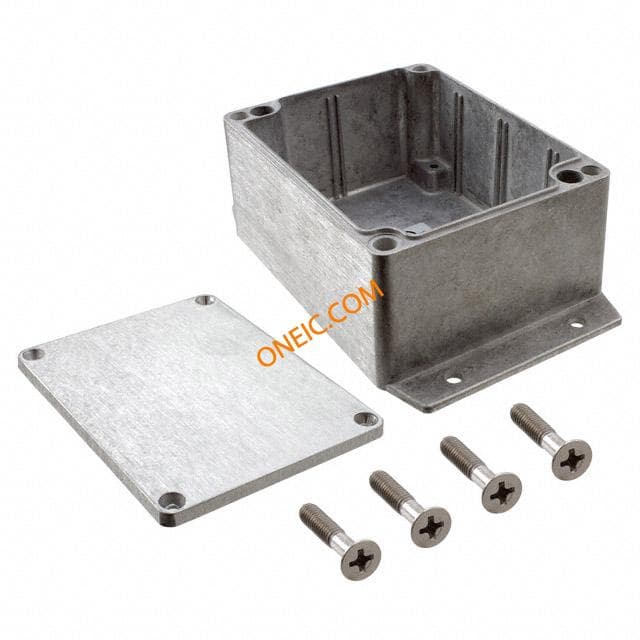

AN-2854
