点击放大查看

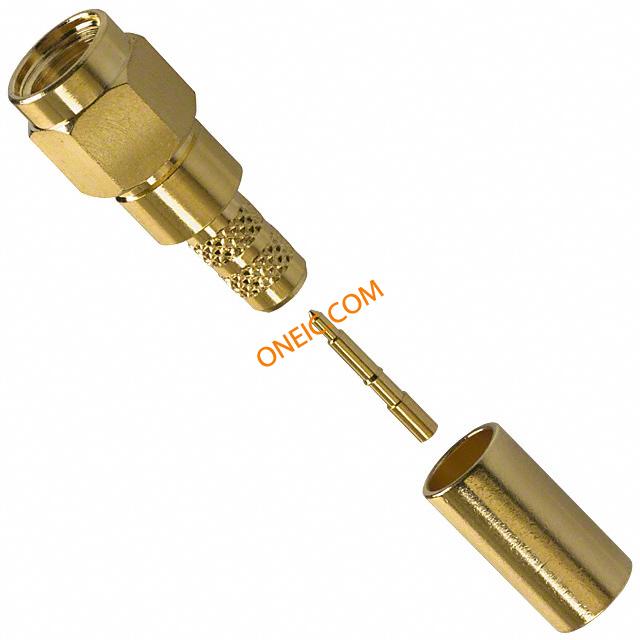

132234
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 12.4GHz 50Ohm Crimp ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str crimp plug;for LMR200 cable;50 ohm RF/COAXIAL, SMA PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, sma str crimp plug, for LMR200 cable, 50 ohm 132234 SMA Male Crimp Connector, Straight, Hex Nut |
| 分类 |
商业参数
| 其他名称 | ACX1196 | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 12.4 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 12.4GHz | ||
机械参数
| 深度 | 8 | 高度 | 8 |
| 长度 | 0.843 in. | 重量 | 0.005 |
| 包装方式 | Bulk | 电缆类型 | :Belden 7807A, LMR-200 |
| 本体表面处理 | Gold | 电缆组 | LMR-200 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Gold | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Gold | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 21.4 | 主要材料 | SMA |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | :Straight Plug | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :- | 连接类型 | Flexible Cable |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -65°C ~ 165°C | ||
