132137
| 制造商 | |

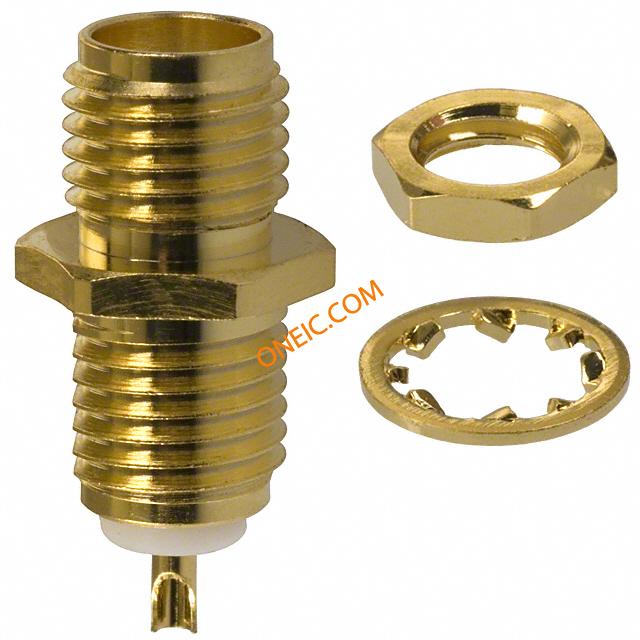

| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder Pot ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd jack recept;front mount;solder pot term;50 ohm RF Connectors / Coaxial Connectors SMA BULKHEAD RECPT FRONT MOUNT connector, rf coaxial, sma blkhd jack recept, front mount, solder pot term, 50 ohm 132137 SMA Female Connector, Bulkhead w/Solder Cup, Front Mount, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1236 |
| 零件号别名 | 319-0179 99H5027 SMA6351B1-3GT50G-50 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 长度 | 0.682 in. | 重量 | 0.088890 oz |
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 方向 | Straight | 端接方式 | Solder Pot |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 壳体镀层 | Gold | 连接器样式 | SMA |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 17.3 |
| 主要材料 | SMA | 端接样式 | Solder Cup |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder Cup |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Bulkhead | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 产品特性 | Extended Insulation | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
| 应用细节 | Commercial | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
901-9220
amphenol

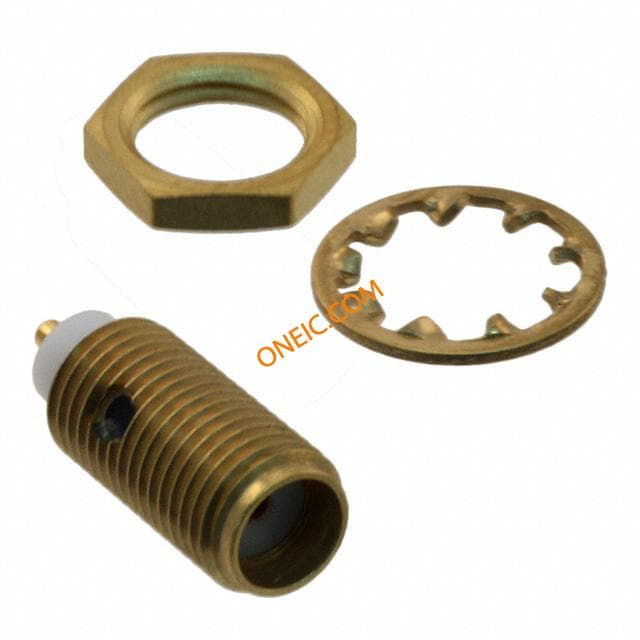

Conn SMA RCP 0Hz to 18GHz 50Ohm ST Panel Mount Gold Over Nickel CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd recept;front or rear mount;blunt post terminal RF Connectors / Coaxial Connectors BLHD JCK POST GLD connector, rf coaxial, sma blkhd recept, front or rear mount, blunt post terminal
