点击放大查看

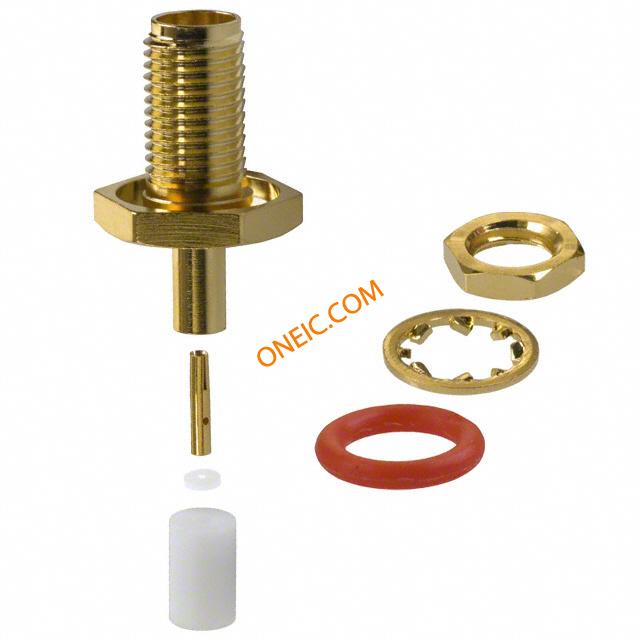

132105
| 制造商 | |
| 描述 | Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Panel Mount Gold CONN SMA JACK STR 50 OHM SOLDER connector;rf coaxial;sma blkhd solder jack;o-ring seal;for 0.085 semi-rigid RF/COAXIAL SMA BHD JACK STR 50 OHM SOLDER connector, rf coaxial, sma blkhd solder jack, o-ring seal, for 0.085 semi-rigid |
| 分类 |
商业参数
| 其他名称 | ACX1183 | 标准包装数量 | Bag |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 抗辐射加固 | No |
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 18GHz | ||
机械参数
| 深度 | 11 mm | 长度 | 19 in. |
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | :RG405 | 本体表面处理 | Gold |
| 电缆组 | RG-405 (.085" Semi Rigid) | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Gold |
| 安装样式 | Panel | 壳体镀层 | Gold |
| 连接器样式 | SMA | 连接器用途 | Threaded |
| 触头材料 | Beryllium Copper | 壳体材料 | Brass |
| 总长度 | 19 mm | 主要材料 | SMA |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 绝缘材料 - 类型 | Polytetrafluoroethylene |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | SMA | 连接器性别 | RCP |
| 连接类型 | Semi-Rigid Cable | 应用细节 | Commercial |
环境参数
| 防护等级 | Weatherproof | 工作温度 | -65°C ~ 165°C |
文档与媒体
相关型号
202112-10
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/CHAIN connector accessory;rf coaxial;sma plug cap with chain;for jacks and receptacles RF/COAXIAL CONNECTOR CAP, SMA, JACK, WITH CHAIN 202112-10 SMA Male Cap with Chain,Chain Length: 100mm, Amphenol
132364
amphenol connex
SMA PL CAP-EXT BODY FOR RP JK SMA CAP FOR FEMALE CONNECTOR RF Connector Accessories SMA MALE CAP FOR REV POLARITY JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forFemaleConn; Straight
202112
amphenol connex
Connector Accessories SMA Male Cap Brass Gold Finish CONN SMA PLUG CAP W/O CHAIN connector accessory;sma dust cap(plug);for unused/open jacks and receptacles RF Connector Accessories SMA MALE CAP CAP, SMA, JACK RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Protective; Male; Brass; forJacksandRecep; Straight CONN CAP (COVER) FOR SMA JACKS
132331
amphenol connex
Connector Accessories SMA Male Shorting Cap Brass Gold Finish CONN PLUG SMA SHORTING CAP connector accessory;rf coaxial;sma male shorting cap for jacks and receptacles RF Connectors / Coaxial Connectors SMA MALE SHORTING CAP RF/COAXIAL CONNECTOR Coaxial/RF; Cap-NoChain; SMA; Terminator; Male; Brass; forJacksandRecep; Straight

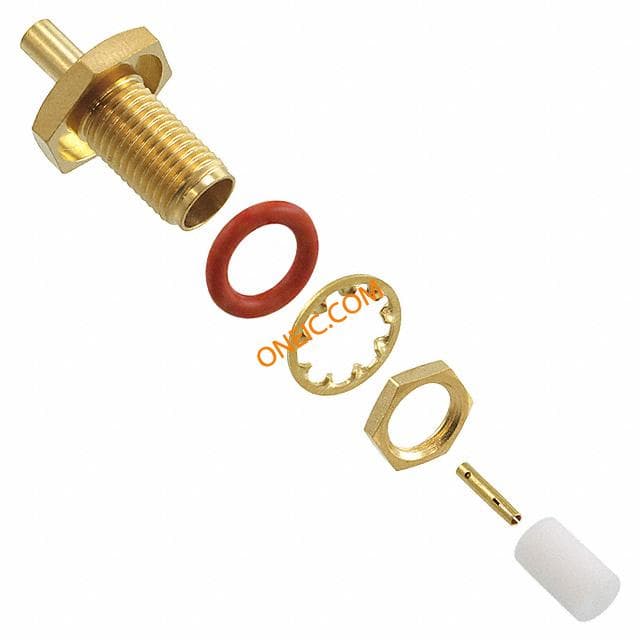

901-9210-2
