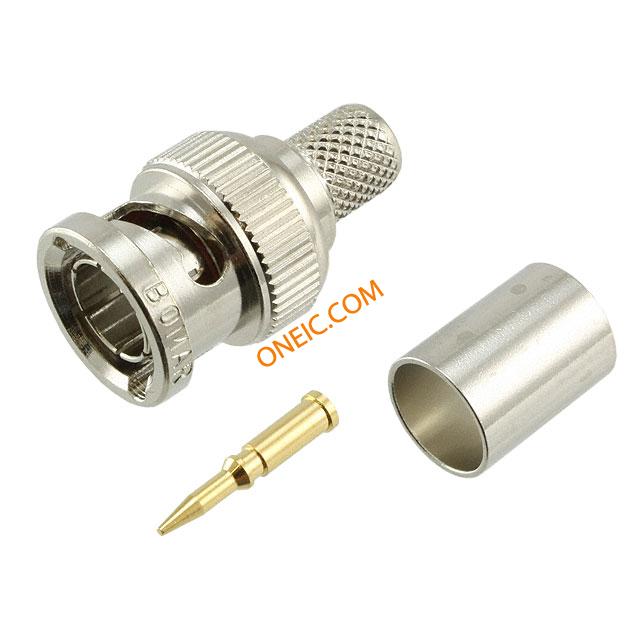

SBC8281
| 制造商 | Bomar Interconnect Products, Inc. |
| 描述 | RF コネクタ PLUG FOR 8281 CONN BNC PLUG STR 75 OHM CRIMP RF Connectors / Coaxial Connectors PLUG FOR 8281 Conn BNC M 0Hz to 1GHz 75Ohm Crimp ST Cable Mount Gold Connector,RFCoaxial;75Ohms;RG59;BNC;ForBelden8281Cable;MachinedBrass |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 991-1007 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 1GHz | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG/U59(DblShd) |
| 本体表面处理 | Nickel | 电缆组 | Belden 8281 |
| 方向 | Straight | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | CableMount |
| 连接器样式 | BNC | 本体材料 | Brass |
| 触头材料 | Brass | 主要材料 | BNC |
| 端接样式 | Crimp | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | TFE | 中心触点镀层工艺 | Nickel |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | CablePlug | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
文档与媒体
相关型号

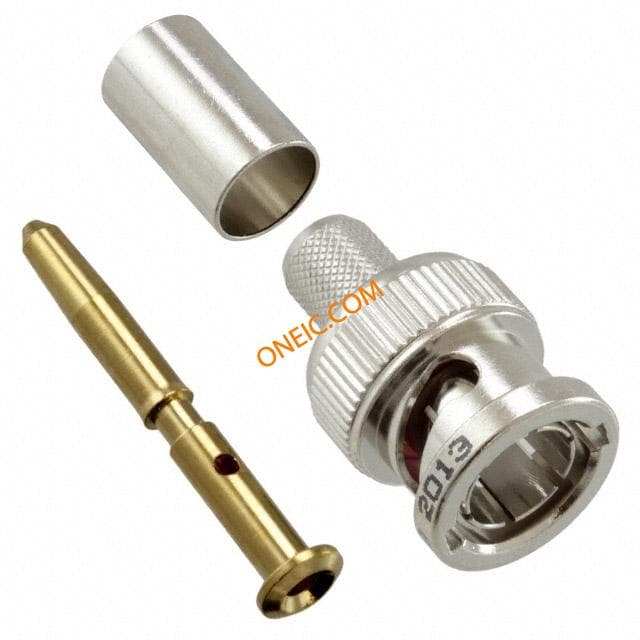

031-80108
amphenol
75 OHM BNC (M) BELDEN 8281 CONN BNC PLUG STR 75 OHM CRIMP Connector; RF; BNC; Straight; Cable Plug; True 75 Ohm; Belden 9231
BDHD100
Bomar Interconnect
Crimpers CRIMP TOOL TOOL CRIMP - SBC-HBC1505 & 1694A CRIMPTOOLFORSBC-HBC1505&1694A

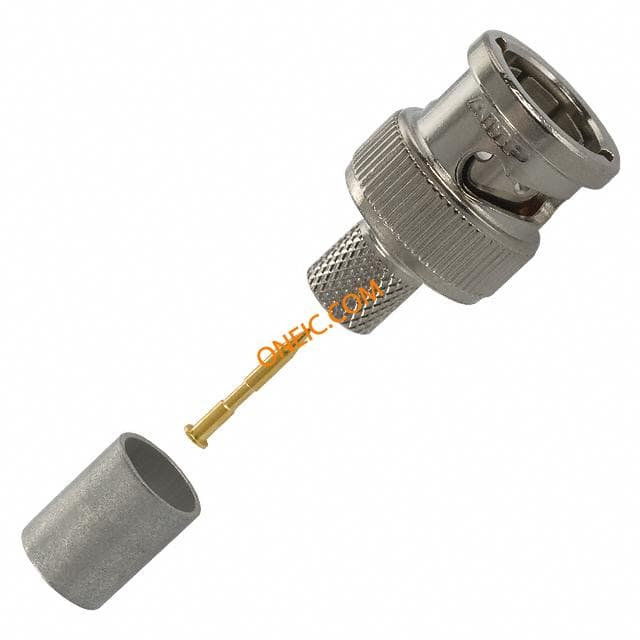

5221185-5
