点击放大查看

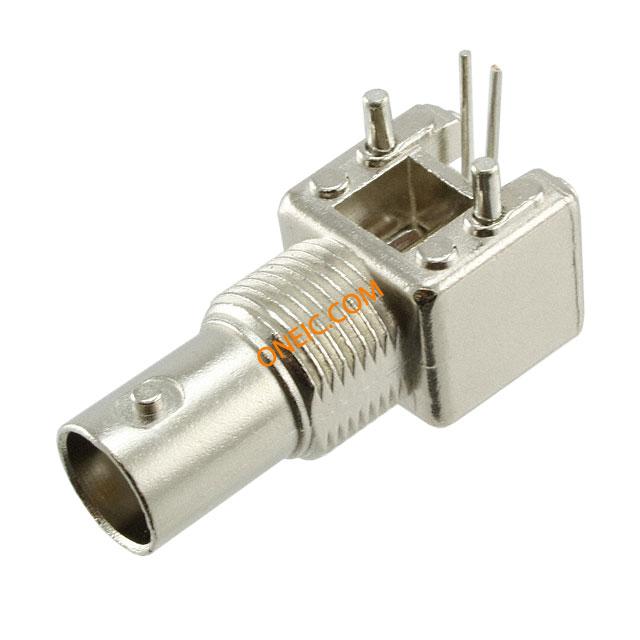

364M595L
| 制造商 | |
| 描述 | RF Connectors 50 OHM LOW METAL CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors 50 OHM LOW METAL Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Nickel/Zinc;CntPlating:Gold |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | 991-1022 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 包装方式 | Tray | 本体表面处理 | Nickel |
| 方向 | Right Angle | 端接方式 | 2-PinThruHole |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle | 行程角度 | RightAngle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel/Zinc |
| 连接器样式 | BNC | 触头材料 | Phosphor Bronze |
| 主要材料 | BNC | 端接样式 | Through Hole |
| 配接方向 | Bayonet | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polypropylene (PP) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | PCBJack | 连接器性别 | Jack |
| 产品特性 | Board Guide | 射频系列/标准 | BNC |
| 应用细节 | Commercial | ||
文档与媒体
相关型号
364NT
Bomar Interconnect
スクリューおよびファスナ HARDWARE JAM NUT NUT FOR 364 SERIES Screws & Fasteners HARDWARE JAM NUT Connector Accessories Jam Nut Straight Brass Nickel Finish hardware,jamnutforpanelmounting364-seriesbncpcbjacks CONN JAM NUT FOR BNC JACKS
31-5637
Amphenol RF

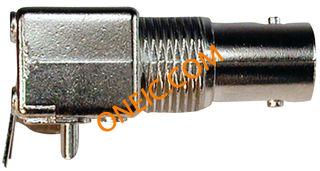

RF Connectors RIGHT ANGLE PCB JACK RF Connectors / Coaxial Connectors RIGHT ANGLE PCB JACK Conn BNC F 50Ohm Solder RA Thru-Hole Gold Bulk RF/COAXIAL BNC BHD JACK R/A 50 OHM SOLDER
