点击放大查看

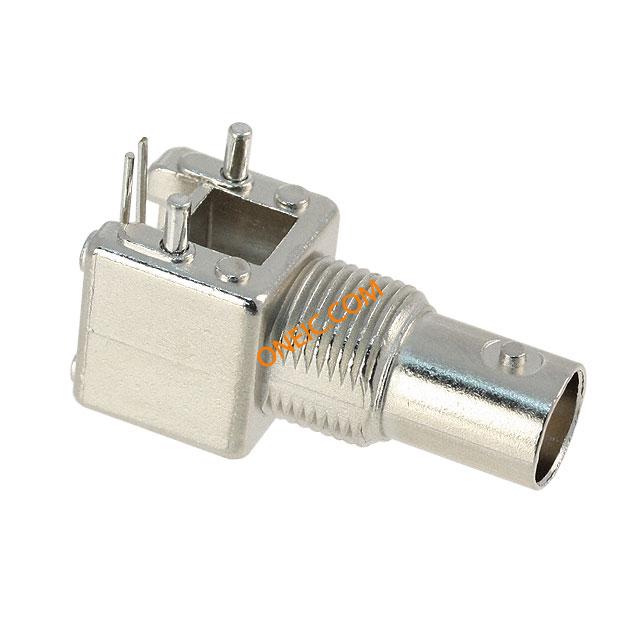

364M595
| 制造商 | |
| 描述 | RF Connectors 50 OHM ALL METAL CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors 50 OHM ALL METAL Conn BNC F 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Nickel/Zinc;CntPlating:Gold BNC R/A PC JACK, STD PROF METL |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | 991-1021 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 包装方式 | Tray | 本体表面处理 | Nickel |
| 方向 | Right Angle | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle | 行程角度 | RightAngle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel/Zinc |
| 安装样式 | Through Hole | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 主要材料 | BNC |
| 端接样式 | Through Hole | 配接方向 | Bayonet |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Right Angle |
产品信息
| 类型 | BNC | 连接器性别 | Jack |
| 产品特性 | Board Guide | 连接类型 | PCB |
| 射频系列/标准 | BNC | 应用细节 | Commercial |
