点击放大查看

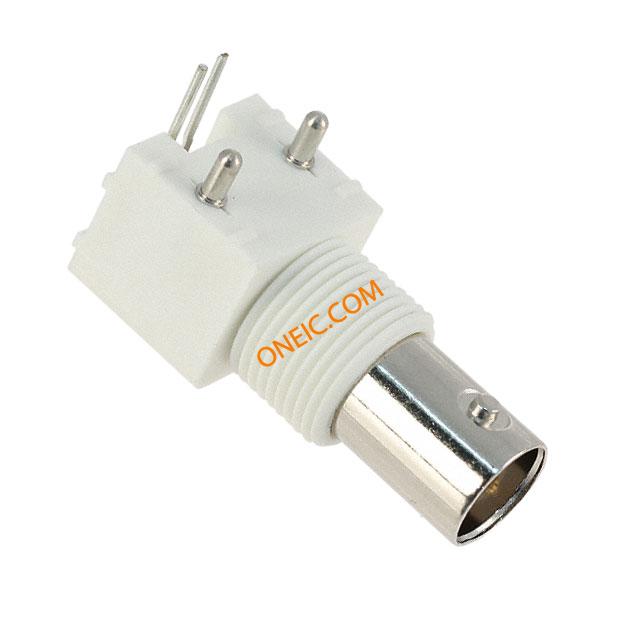

364A595BL
| 制造商 | |
| 描述 | RF コネクタ 50 OHM WHITE VALOX CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors 50 OHM WHITE VALOX Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Body:WhiteValox;CntPlating:Gold BNC R/A PC JACK, LOW PROF WHT |
| 分类 |
商业参数
| 产品 | PCB Connectors | 其他名称 | 991-1019 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 方向 | Right Angle | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Phosphor Bronze | 端接样式 | Through Hole |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Right Angle |
产品信息
| 类型 | Connectors & Jacks | 连接器性别 | Jack |
| 产品特性 | Board Guide | 射频系列/标准 | BNC |
