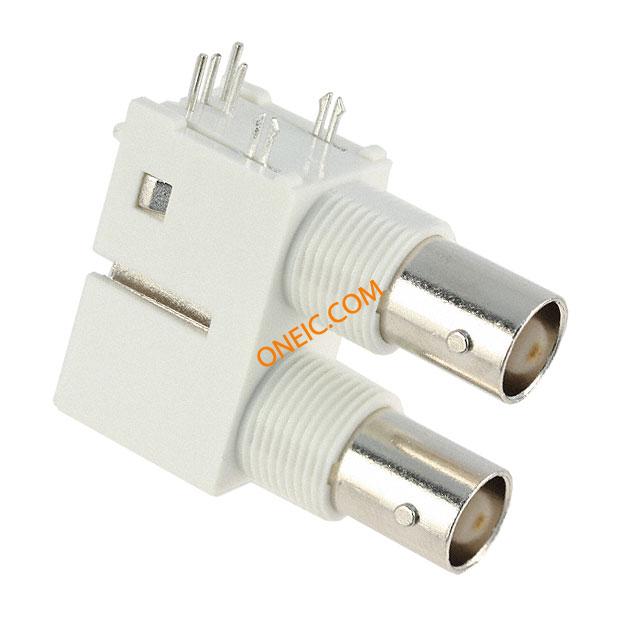

364A2595
| 制造商 | |
| 描述 | RF Connectors 50 OHM DBL WHT VALOX X-2 DUAL STACKED CONN BNC JACK R/A 50 OHM PCB CONNECTOR;RF COAXIAL;DUAL BNC RIGHT ANGLE JACKS;WHITE 50 OHM RF Connectors / Coaxial Connectors 50 OHM DBL WHT VALOX X-2 DUAL STACKED Conn Dual Port BNC F/F 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold RF/COAXIAL, DUAL BNC JACK R/A 50 OHM SLDR Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Body:WhiteValox;CntPlating:Gold |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | 991-1023 |
| 产品类别 | RF Connectors | 标准包装数量 | 20 |
| 工厂包装数量 | 20 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 阻抗 | 50 Ohms | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 颜色 | White | 重量 | 0.027 |
| 包装方式 | Bulk | 电缆类型 | :- |
| 本体表面处理 | Nickel | 方向 | Right Angle |
| 端接方式 | Solder | 基体材料 | Brass |
| 外壳颜色 | White | 安装类型 | Panel Mount, Bulkhead; Through Hole, Right Angle |
| 行程角度 | RightAngle | 连接器类型 | Jack PCB Mount |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | WhiteValox | 安装样式 | Through Hole |
| 连接器样式 | BNC | 触头材料 | Phosphor Copper |
| 主要材料 | BNC | 端接样式 | Solder |
| 配接方向 | Bayonet | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polypropylene (PP) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
| 供应商器件封装 | Right Angle | ||
产品信息
| 类型 | Dual Port BNC | 连接器性别 | Receptacle (Female) |
| 系列 | :- | 连接类型 | PCB |
| 射频系列/标准 | BNC | 应用细节 | Commercial |
