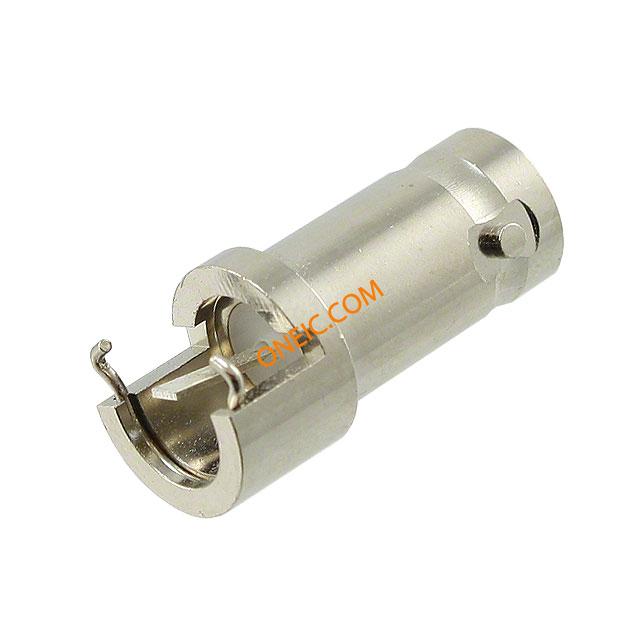

361V509E

制造商	Bomar Interconnect Products, Inc.
描述	RF Connectors 50 OHM BNC V-BITE CONN BNC JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors 50 OHM BNC V-BITE Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Body:Brass/Nickel;Cnt:Phos./Tin BNC V-BITE 50 OHM
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

产品	Connectors	其他名称	991-1034
产品类别	RF Connectors / Coaxial Connectors	标准包装数量	80
工厂包装数量	80

合规参数

RoHS

RoHS Compliant By Exemption

电气参数

阻抗	50 Ohm	额定电压	500V
最大频率	4GHz

机械参数

包装方式	Tray	本体表面处理	Nickel
方向	Straight	端接方式	Solder
基体材料	Brass	外壳颜色	Silver
安装类型	Board Edge, End Launch	行程角度	Straight
连接器类型	Jack, Female Socket	接触镀层	Gold
紧固类型	Bayonet Lock	外壳涂层	Nickel
安装样式	EdgeMount	连接器样式	BNC
触头材料	PhosphorBronze	主要材料	BNC
端接样式	Solder	屏蔽层端接方式	Solder
接触件端接	Solder	介电材料	Polyethylene (PE)
中心触点镀层工艺	Tin	中心触点材料	Brass

产品信息

类型	PCBJack	连接器性别	Jack
射频系列/标准	BNC

文档与媒体

在线文档

V-Bite PC Edge Mount

PDF 文档

BNC & TNC Assembly Instr

PDF 文档

361Vx04E Drawing

PDF 文档

1633212.pdf

在线文档

v-bite.htm
