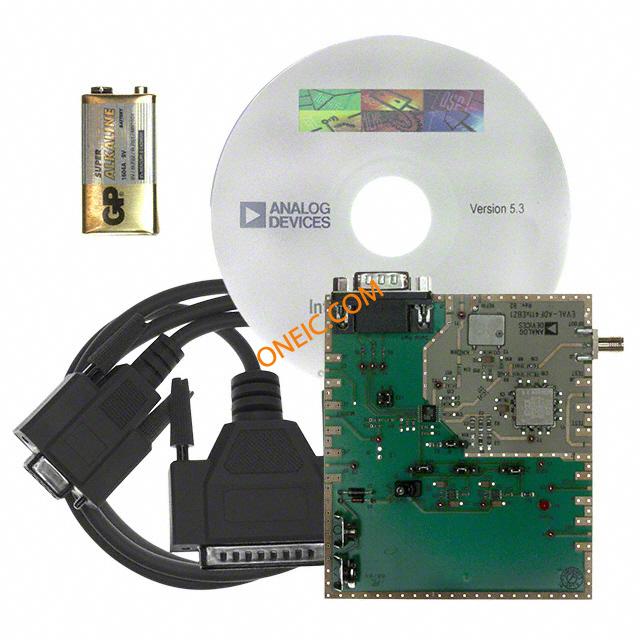

EVAL-ADF4113EBZ2
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For ADF4113 1750MHz BOARD EVAL FOR ADF4113 1750MHZ Clock & Timer Development Tools ADF4113 EVAL BRD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALADF4113EBZ2 |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 819 MHz to 915 MHz | 接口 | Parallel |
| 供电电流 | 8.5 mA | 供电电压 | 9 V |
机械参数
| 包装方式 | Bulk | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Cable, Software |
| 嵌入式 | No | 主要用途 | Timing, Frequency Synthesizer |
| 工具类型/特性 | ADF4113 | 主要特性 | Single Integer-N PLL |
| 射频系列/标准 | ADF4113 | 使用的IC/零件 | ADF4113 |
| 次要特性 | 900MHz GSM, Graphical User Interface | ||
