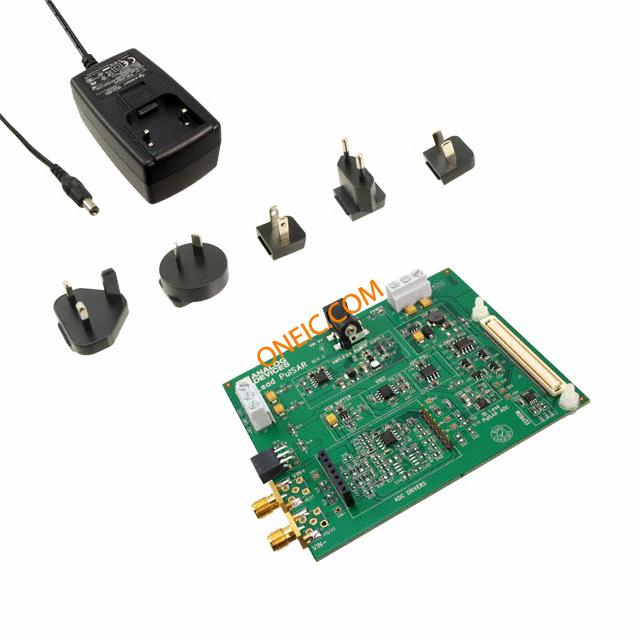

EVAL-AD7988-5SDZ
| 制造商 | Analog Devices, Inc. |
| 描述 | Evaluation Board For The 10-Lead Family Of 16-Bit PulSAR ADCs BOARD EVAL FOR AD7988-5 Data Conversion IC Development Tools EVAL-AD7988-5 AD7988-5, ADC, SAR, EVALUATION BOARD |
| 分类 |
商业参数
| 产品 | Evaluation Boards | 其他名称 | EVALAD79885SDZ |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
电气参数
| 接口 | SPI | 输入范围 | 0 ~ VREF |
| 数据接口 | DSP, MICROWIRE™, QSPI™, Serial, SPI™ | 位数 | 16 |
| 供电电压 | 2.4 V to 5.1 V | 元件数量 | :- |
| ADC/DAC 数量 | 1 | 典型功耗（条件） | 3.5mW @ 500kSPS |
| 采样率（每秒） | 500k | ||
机械参数
| 重量 | 0.5 | 包装方式 | Bulk |
产品信息
| 类型 | ADC | 系列 | AD7988-5 |
| 内容 | Board | 产品特性 | :16bit Successive Approximation ADC, SPI Serial Interface |
| 套件类型 | :Data Converter | 套件内容 | :- |
| 工具类型/特性 | AD7988-5 | 使用的IC/零件 | AD7988-5 |
| 芯片组制造商 | :Analog Devices | 应用细节 | :ADC |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
