LT6350HDD#TRPBF
| 制造商 | Analog Devices, Inc. |
| 描述 | SP Amp DIFF AMP Dual R-R I/O 12V 8-Pin DFN EP T/R IC DIFF CONVERT/ADC DRIVER 8-DFN |
| 分类 |
商业参数
| 标准包装数量 | 2,500 | 标准封装名称 | DFN |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电源抑制比 | 80 | 输出类型 | Differential|Rail to Rail |
| 共模抑制比、电源抑制比（典型） | 82 | 供电电压 | 5 |
| 供电类型 | Single | 通道数量 | 2 |
| 元件数量 | 2 | 输入电阻 | 4(Typ)@5V |
| 最小输入电压 | 6.02(Typ) | 增益带宽积 | 115 |
| 轨到轨工作 | Rail to Rail Input/Output | 输入偏置电流（最大） | 8(Min)@5V@-40C to 125C |
| 输入失调电压（最大） | 1.5@5V@-40C to 125C | 共模瞬态抗扰度（最小） | Automotive |
机械参数
| 包装方式 | Tape and Reel | 引脚样式 | No Lead |
| 安装类型 | Surface Mount | 封装形式 | 8-WFDFN Exposed Pad |
| 包装数量 | DFN EP | 位数 | 8 |
| 供应商器件封装 | 8-DFN (3x3) | ||
产品信息
| 类型 | Differential Amplifier | 应用 | Data Acquisition |
环境参数
| 工作温度 | 125 | ||
文档与媒体
相关型号
DC1783A-A
Analog Devices, Inc.
BOARD SAR ADC LTC2380-16 LTC2380-16, SAR ADC, 16BIT, 2MSPS, DEMO BOARD
DC1783A-B
Analog Devices, Inc.
BOARD SAR ADC LTC2378-16 16BIT ADC Eval Brd, Rq. DC590

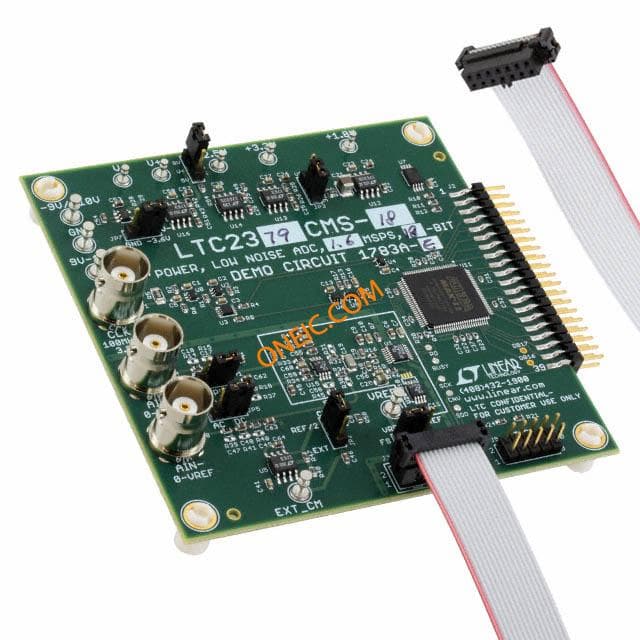

DC1783A-E
Analog Devices, Inc.
BOARD SAR ADC LTC2379-18 LTC2379-18, SAR ADC, 18BIT, 1.6MSPS, DEMO BOARD

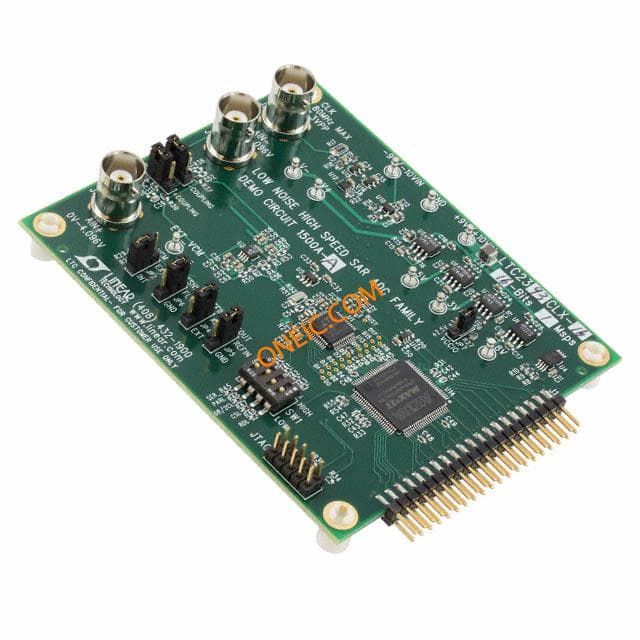

DC1500A-A
Analog Devices, Inc.
BOARD SAR ADC LTC2393-16 LTC2393, 16BIT ADC, 1MBPS, EVAL BOARD

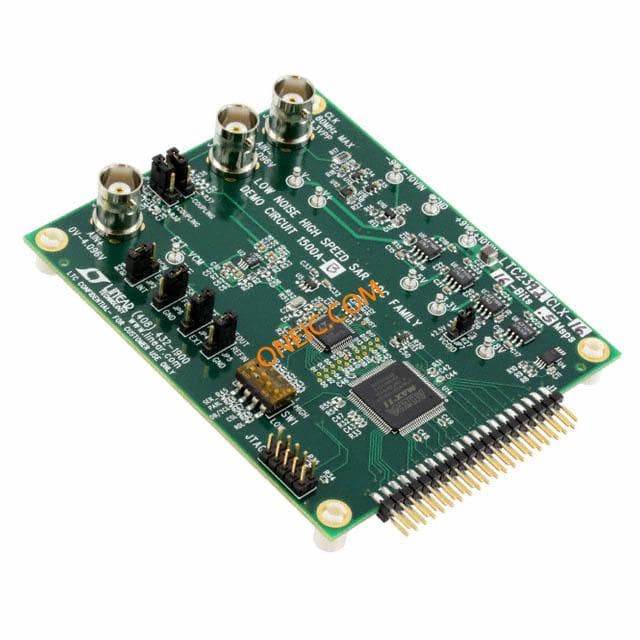

DC1500A-B
Analog Devices, Inc.
BOARD SAR ADC LTC2392-16 16BIT ADC Eval Brd, Rq. DC890 & LVDS_XFMR

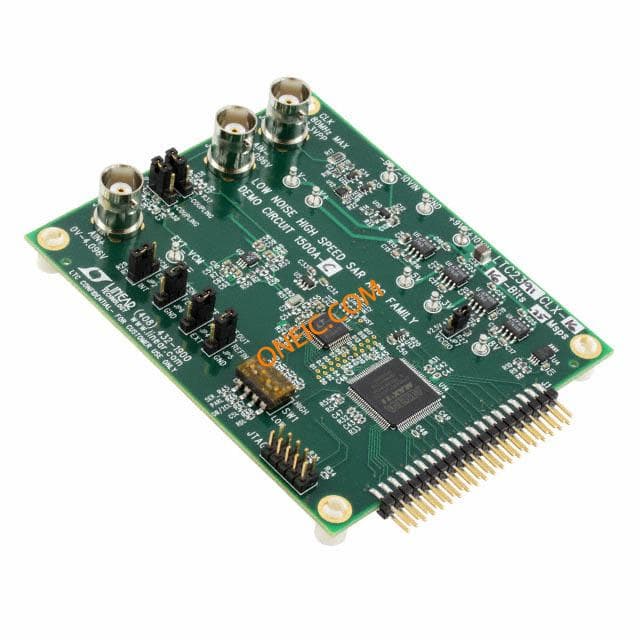

DC1500A-C
