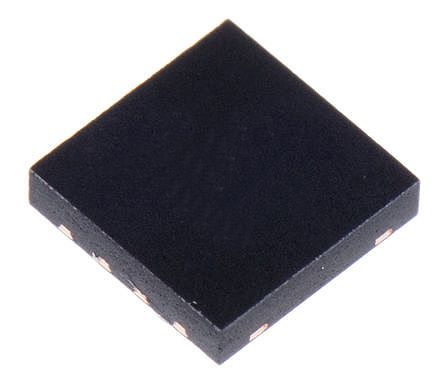

点击放大查看
LT6350HDD#PBF
| 制造商 | Analog Devices, Inc. |
| 描述 | SP Amp DIFF AMP Dual R-R I/O 12V 8-Pin DFN EP IC DIFF CONVERT/ADC DRIVER 8-DFN LT6350HDD#PBF, Operational Amplifier Low Noise, 33MHz Differential, 2.7 to 12V, 8-Pin DFN Linear Technology 低噪声 运算放大器, 33MHz 差分, 2.7 → 12 V, 8针 DFN |
| 分类 |
商业参数
| 标准包装数量 | 121 | 标准封装名称 | DFN |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电源抑制比 | 80 | 频率 | 1.9nV/√Hz |
| 输出类型 | Differential|Rail to Rail | 输入功率 | 单 |
| 转换速率 | 48V/µs | 共模抑制比、电源抑制比（典型） | 82 |
| 供电电压 | 2.7 → 12 V | 供电类型 | Single |
| 通道数量 | 2 | 元件数量 | 2 |
| 输入电阻 | 4(Typ)@5V | 典型电压增益 | 2 V/V |
| 最小输入电压 | 6.02(Typ) | 增益带宽积 | 33MHz |
| 轨到轨工作 | Rail to Rail Input/Output | 输入偏置电流（最大） | 8(Min)@5V@-40C to 125C |
| 输入失调电压（最大） | 1.5@5V@-40C to 125C | 共模瞬态抗扰度（最小） | Automotive |
机械参数
| 宽度 | 3mm | 高度 | 0.7mm |
| 长度 | 3mm | 包装方式 | Tube |
| 引脚样式 | No Lead | 安装类型 | Surface Mount |
| 引脚数 | 8 | 封装形式 | 8-WFDFN Exposed Pad |
| 包装数量 | DFN EP | 尺寸/外形 | 3 x 3 x 0.7mm |
| 位数 | 8 | 供应商器件封装 | 8-DFN (3x3) |
产品信息
| 类型 | Differential Amplifier | 功能 | Y |
| 应用 | Data Acquisition | 放大器类型 | 低噪声 |
环境参数
| 工作温度 | -40 °C | ||
