点击放大查看

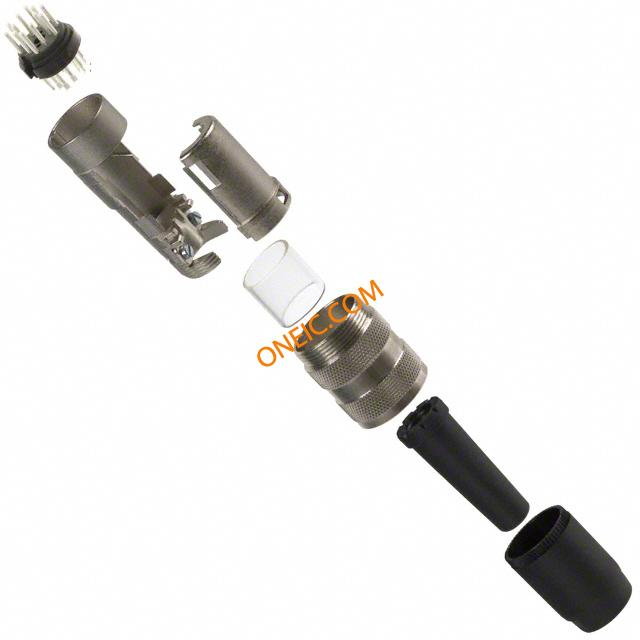

T 3635 001
| 制造商 | |
| 描述 | Conn Circular M 12 POS Solder ST Cable Mount 12 Terminal 1 Port CONN CIR MALE 12POS CBL MNT Circular DIN Connectors 12 Pin Male; Cable Mount PLUG, FREE, C091A, 12WAY connector, circular din, str male cable conn, 12 silver-pltd solder contact, ip40 |
| 分类 |
商业参数
| 零件号别名 | 001 3635 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366990 | 认证机构标志 | UL Recognized/IEC |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 150V | 供电电压 | DIN |
| 最大额定电流 | 3A | ||
机械参数
| 重量 | 0.03 | 直径 | 17 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 24 AWG | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder |
| 触头类型 | 12Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 3-6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Free Hanging |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 插入角度 | :- | 本体材料 | :- |
| 触头材料 | :- | 壳体材料 | Die Cast |
| 总长度 | 67.5 | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | M |
| 触点数 | 12 | 接触件端接 | :Solder |
| 介电材料 | Thermoplastic | 位数 | 12 |
| 外壳尺寸-插件 | DIN | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Circular | 连接器性别 | :Plug |
| 系列 | :C091A | 产品特性 | Shielded, Strain Relief |
| 制造商全称 | C091-A Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091A | ||
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
