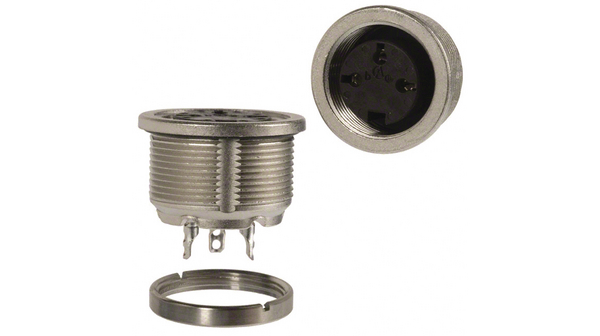

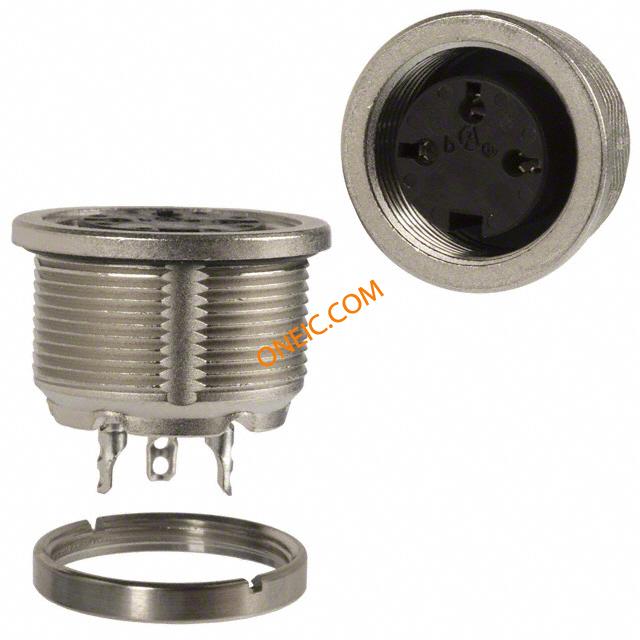

C091 31N003 100 2
| 制造商 | |
| 描述 | Conn Circular F 3 POS Solder ST Panel Mount 3 Terminal 1 Port Circular DIN Connectors 3P DIN PANEL FEMALE CONN RCPT 3POS FRONT MT SOLDER CIRCULAR CONNECTOR RECEPTACLE 3POS PANEL connector, circ din, female panel recept, front mt, 3din silver plt socket cont, ip67 Appliance socket C091D 3-pin Poles=3, C091 31N003 100 2, Amphenol |
| 分类 |
商业参数
| 零件号别名 | 100 2 31N003 34B7608 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | Boxed | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | 认证机构标志 | UL Recognized |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 300 V | 供电电压 | DIN |
| 最大额定电流 | 5 A | ||
机械参数
| 重量 | 0.009 | 直径 | 20 |
| 包装方式 | Bulk | 出线方向 | Yes |
| 导线线规 | 20-26 | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 触头类型 | 3Signal | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 电缆直径 | 4 mm to 6 mm | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 插入角度 | :- | 本体材料 | :- |
| 壳体材料 | Die Cast | 总长度 | 17.6 |
| 主要材料 | DIN | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 介电材料 | Thermoplastic | 位数 | 3 |
| 外壳尺寸-插件 | DIN (180 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | :C 091 D | 产品特性 | Shielded |
| 制造商全称 | C091-D Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091D | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
C091 11H003 000 2
amphenol
Conn Circular M 3 POS Crimp ST Cable Mount 3 Terminal 1 Port Circular DIN Connectors MALE CABLE CONNECTOR 3 WAY CONN PLUG 3POS CABLE PIN CRIMP

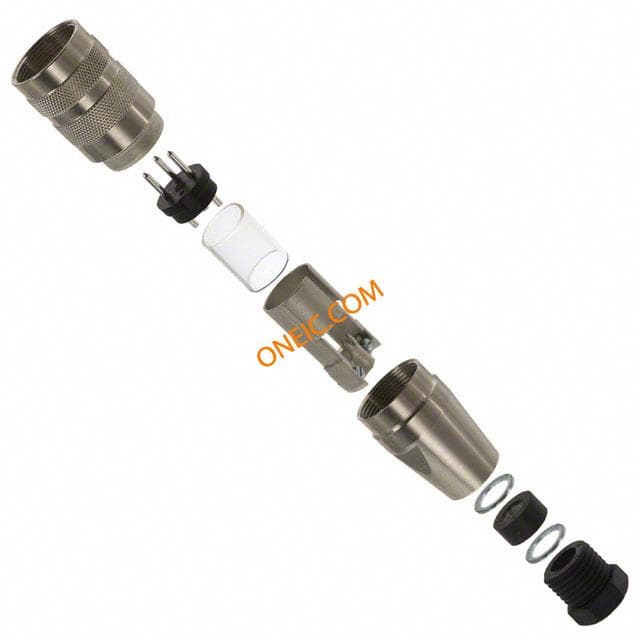

C091 31H003 100 2
