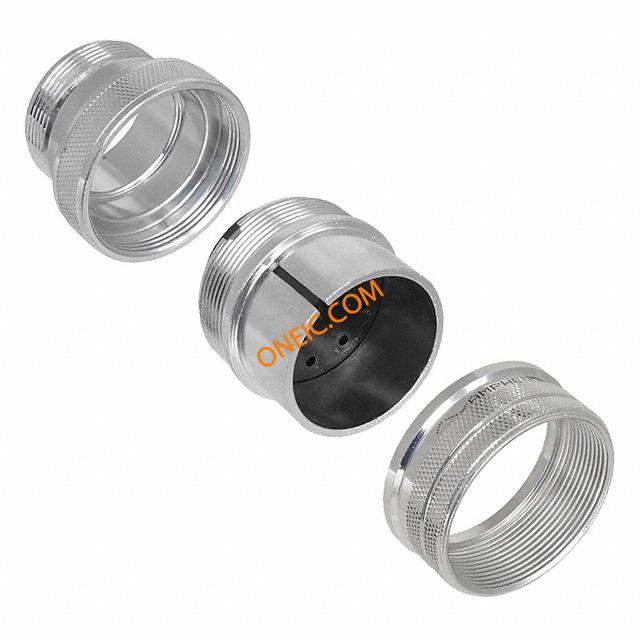

97-4106A-28-20P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG PLUG 14POS STRGHT PIN connector;metal circ;str plug;size 28;for 10#12;4#16 crimp pin cont;clear finish Circular MIL Spec Connector 14P Size 28 Plug Crimp MIL-DTL-5015 connector, metal circ, str plug, size 28, for 10#12, 4#16 crimp pin cont, clear finish |
| 分类 |
商业参数
| 其他名称 | 974106A2820P | 零件号别名 | 605-4583 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 500/700 VAC/VDC | 最大额定电流 | 23/13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 28 | 导线线规 | #12, #16 |
| 方向 | N (Normal) | 外壳样式 | straight plug |
| 端接方式 | Crimp | 触点尺寸 | 12 (10), 16 (4) |
| 触头类型 | pin contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Clear Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 28-20 | 触头材料 | Copper Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 14 |
| 位数 | 14 | 外壳尺寸-插件 | 28-20 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 10#12, 4#16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | MIL-C-5015 Circular |
| 类别 | A | 连接器性别 | PL |
| 系列 | 97 | 产品特性 | Rear Release |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
