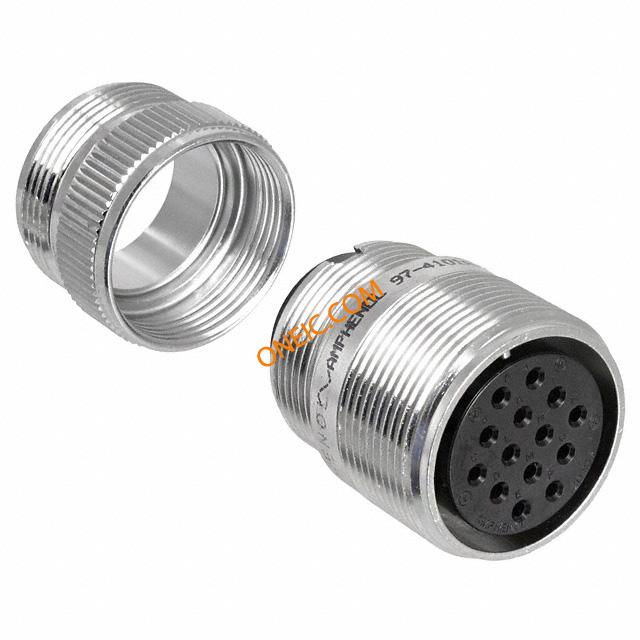

97-4101A-20-27S
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular SKT 14 POS Crimp ST Cable Mount 14 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN HSG RCPT 14POS STRGHT SKT connector;metal circ;cable recept housing;size 20;for 14#16 crimp socket;clear Circular MIL Spec Connector Cable Mount 9 Socket connector, metal circ, cable recept housing, size 20, for 14#16 crimp socket, clear |
| 分类 |
商业参数
| 其他名称 | 974101A2027S | 零件号别名 | 97-4101A-20-27S U10-824031-27S |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 500/700 VAC/VDC | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 20 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | cable connecting receptacle |
| 端接方式 | Crimp | 触点尺寸 | 16 |
| 触头类型 | socket contacts | 安装类型 | Cable Mount |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - crimp type | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Clear Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 20-27 | 触头材料 | Copper Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 14 |
| 位数 | 14 | 外壳尺寸-插件 | 20-27 |
| 安装孔直径 | 0.12 " | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 14#16 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | MIL-C-5015 Circular |
| 类别 | A | 连接器性别 | RCP |
| 系列 | 97 | 产品特性 | Rear Release |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
