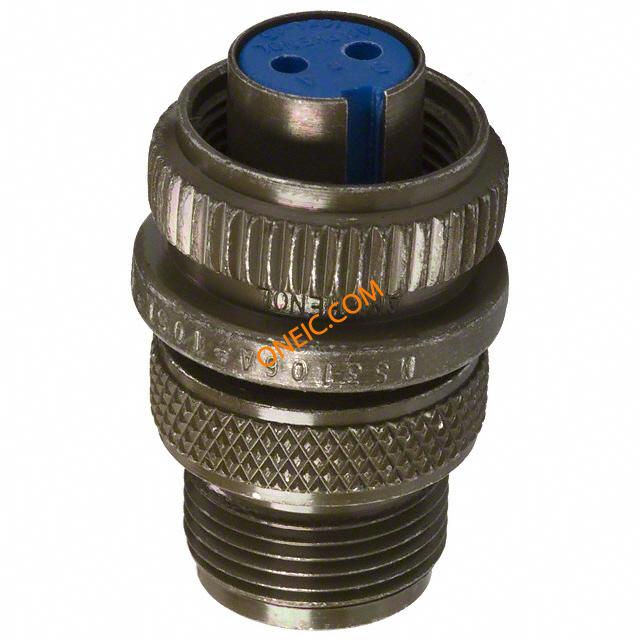

97-3106A-10SL-4S
| 制造商 | Amphenol Corporation |
| 描述 | Conn MIL-C-5015 Circular SKT 2 POS Solder ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS W/SOCKETS connector;metal circ;str plug;solid bkshl;size 10sl;2#16 solder socket;olive CIRCULAR, PLUG, 10SL-4, 2 POS, CABLE connector, metal circ, str plug, solid bkshl, size 10sl, 2#16 solder socket, olive Amphenol 2路 连接器 插头 , 外壳尺寸10SL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Not Compliant |
| 海关税号 | 85369010 | 认证机构标志 | UL/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.014 | 直径 | 22.23 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 10SL | 导线线规 | 16 |
| 方向 | N (Normal) | 端接方式 | Solder |
| 触头类型 | 2Signal | 安装类型 | Cable Mount |
| 外壳镀层 | Cadmium | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 封装形式 | Metal | 连接器用途 | Threaded |
| 插入角度 | :10SL-4 | 本体材料 | :Aluminium |
| 触头材料 | :Zinc | 壳体材料 | Aluminum Alloy |
| 总长度 | 34.93 | 主要材料 | 5015 Commercial |
| 第一触头极性 | SKT | 触点数 | 2 |
| 接触件端接 | :Solder | 介电材料 | Diallyl-Phthalate |
| 位数 | 2 | 外壳尺寸-插件 | 10SL-4 |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 2#16 |
| 第一连接器安装类型 | :Cable | 外壳尺寸-插入件（转换至） | 10SL-4 |
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | PL | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-4
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;an3057 cable clamp;for connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp AN3059 Shell Size 10SL, 12S CABLE GLAND, CLAMP 97 SERIES connector accessory, an3057 cable clamp, for connector size 10sl, 12, 12s, olive drab
97-3057-1004
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp;connector size 10sl;12;12s;olive drab Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Size 10SL, 12S CABLE GLAND, SHELL SIZE 10 CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clamp, connector size 10sl, 12, 12s, olive drab Amphenol 97 系列 尺寸10SL, 12S 电缆夹, 使用于带护套电缆，带管道保护的电线

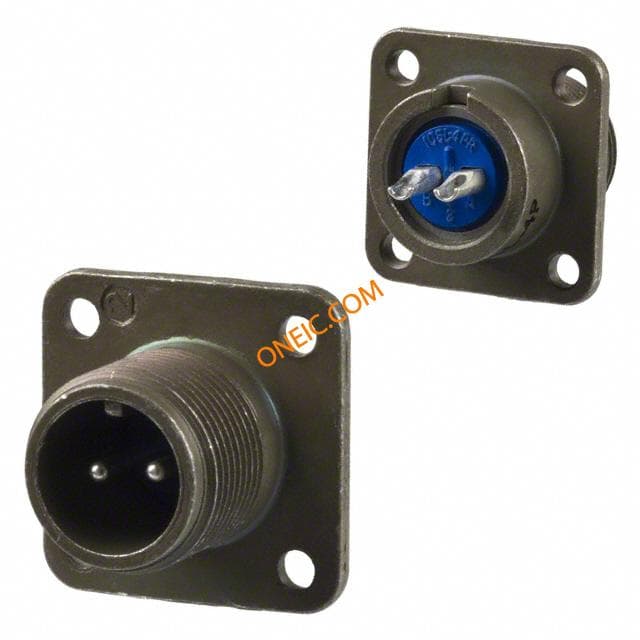

97-3102A-10SL-4P
