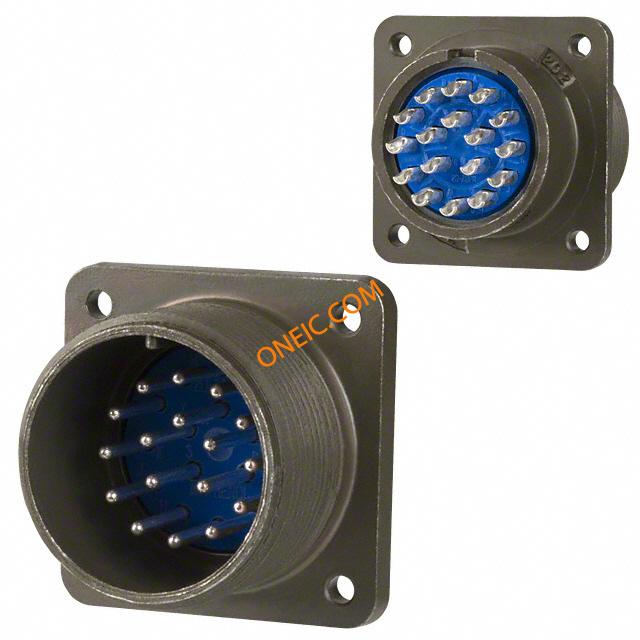

97-3102A-20-29P
| 制造商 | |
| 描述 | Conn MIL-C-5015 Circular PIN 17 POS Solder ST Box Mount 17 Terminal 1 Port MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 17POS W/PINS connector;metal circ;box recept;size 20;19 #16 solder pin contact;olive drab CIRCULAR CONN, RECPT, SIZE 20, 17POS, BOX connector, metal circ, box recept, size 20, 17 #16 solder pin contact, olive drab |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366910 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.045 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 20 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | box mount receptable | 端接方式 | Solder |
| 触头类型 | pin contacts | 安装类型 | Box Mount |
| 行程角度 | Straight | 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 20-29 | 本体材料 | :Aluminium Alloy |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 第一触头极性 | :Pin | 触点数 | 17 |
| 介电材料 | Diallyl-Phthalate | 位数 | 17 |
| 外壳尺寸-插件 | 20-29 | 安装孔直径 | 0.12 " |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 典型触点布局 | 17#16 |
| 第一连接器安装类型 | :Box | ||
产品信息
| 类型 | MIL-C-5015 Circular | 类别 | A |
| 连接器性别 | RCP | 系列 | :97 |
| 制造商全称 | 97 Series | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
