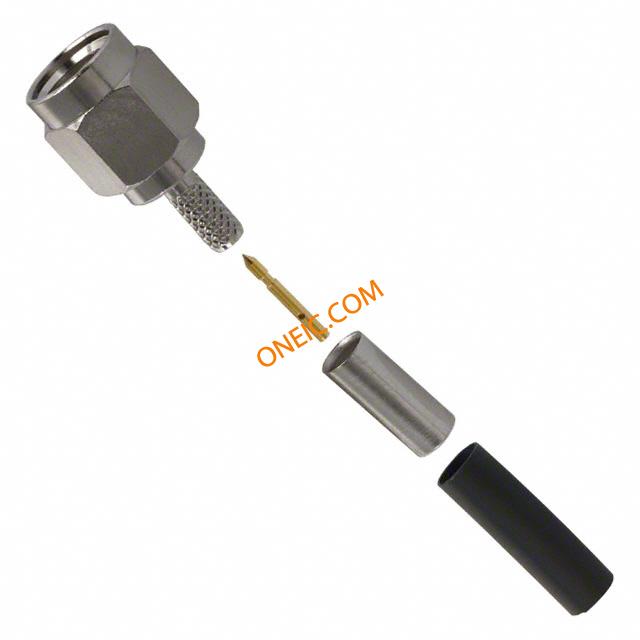

901-9877-RFX
| 制造商 | |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold CONN SMA PLUG STR 50 OHM SOLDER connector;rf coaxial;sma str plug;crimp/solder;captive cont;rg174;188;316;50 ohm RF/COAXIAL SMA PLUG STR 50 OHM CRIMP/SLDR connector, rf coaxial, sma str plug, crimp/solder, captive cont, rg174, 188, 316, 50 ohm |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | Military Specification | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 375 V | 最大频率 | 12.4GHz |
机械参数
| 深度 | 8 mm | 高度 | 8 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 电缆类型 | :RG174, RG188A, RG316 | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 188, 316 | 端接方式 | Solder |
| 重量（g） | 8.40000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | SMA, RFX |
| 连接器用途 | Threaded | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 19.8 mm |
| 主要材料 | SMA | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Tetrafluoroethylene Fluorocarbon | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Straight |
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Captivated Contact |
| 连接类型 | Coaxial Cable | 应用细节 | Commercial |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
