点击放大查看

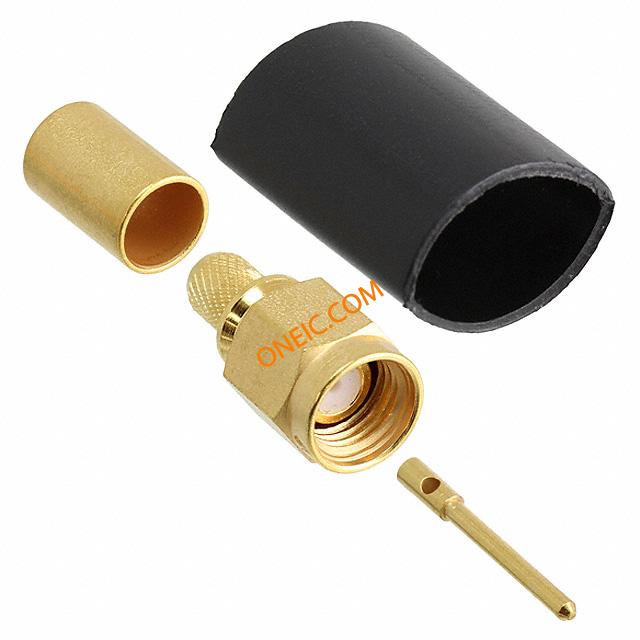

901-9511-2
| 制造商 | Amphenol Corporation |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER RF Connectors / Coaxial Connectors CRIMP TYPE (M) FOR RG58 141 Connector; RF; SMA; Straight; Cable Plug; 50 Ohm; 89907, B7806A, RG-141, 58, 58C |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 901-9511-2 93F7537 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 包装方式 | Bulk | 电缆类型 | RG-58, RG-58C, RG-141, Belden 7806A, Belden 89907 |
| 本体表面处理 | Gold | 电缆组 | RG-58 |
| 方向 | Straight | 端接方式 | Solder |
| 基体材料 | Stainless Steel | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Threaded | 连接器样式 | SMA |
| 触头材料 | Beryllium Copper | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 产品特性 | Heat Shrink Tubing | 极性 | Standard |
| 连接类型 | Coaxial Cable | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 100 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
