点击放大查看

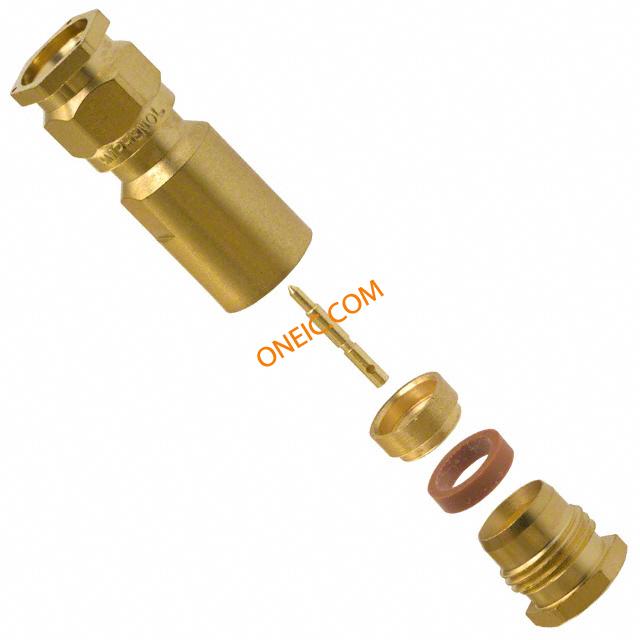

901-103
| 制造商 | Amphenol Corporation |
| 描述 | Conn SMA PL 0Hz to 18GHz 50Ohm Solder ST Cable Mount Gold Over Nickel CONN SMA PLUG STR 50 OHM SOLDER |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 18 GHz | 阻抗 | 50 Ohm |
| 最大频率 | 12.4GHz | ||
机械参数
| 包装方式 | Bulk | 本体表面处理 | Gold |
| 电缆组 | RG-142, 223 | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Cable Mount | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Threaded |
| 连接器样式 | SMA | 触头材料 | Beryllium Copper |
| 屏蔽层端接方式 | Clamp | 接触件端接 | Solder |
| 介电材料 | Polytetrafluoroethylene (PTFE) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Beryllium Copper | ||
产品信息
| 类型 | SMA | 连接器性别 | PL |
| 连接类型 | Coaxial Cable | ||
环境参数
| 工作温度 | -65°C ~ 165°C | ||
