点击放大查看

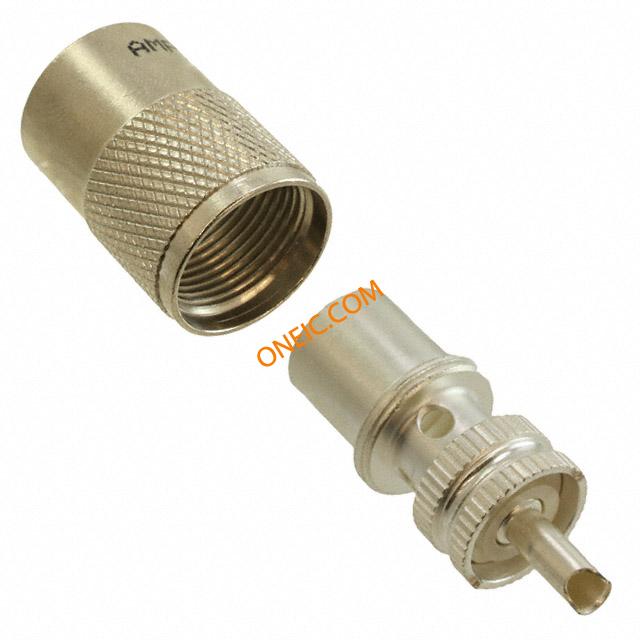

083-1SP
| 制造商 | |
| 描述 | Conn UHF PL 0Hz to 300MHz Solder ST Cable Mount Silver CONN UHF PLUG STR 50 OHM SOLDER connector, rf coaxial, uhf str plug, solder/solder, rg8, 9, 11, 213, 214, 63, 87a, 225 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 300 MHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 300MHz |
机械参数
| 直径 | 19 | 包装方式 | Bulk |
| 电缆类型 | RG/U 8,9,11,13,63,87A,149,213,214,216,225 | 本体表面处理 | Silver |
| 电缆组 | RG-8 | 端接方式 | Solder |
| 基体材料 | Brass/Zinc Die Cast | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Silver |
| 壳体镀层 | Silver | 连接器样式 | UHF |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 总长度 | 38 |
| 主要材料 | UHF | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene|Copolymer... | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | UHF | 连接器性别 | PL |
| 连接类型 | Coaxial Cable | 应用细节 | True MIL |
环境参数
| 工作温度 | -65°C ~ 165°C | 结工作温度 | 165 °C |
