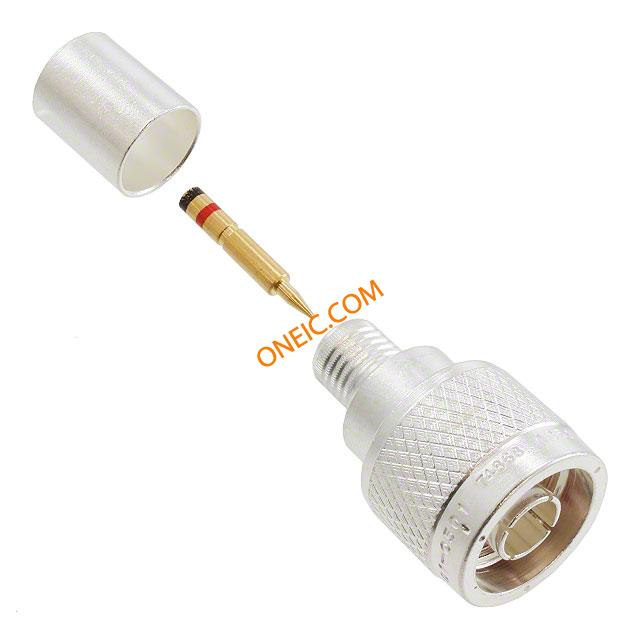

082-4425
| 制造商 | Amphenol Corporation |
| 描述 | Conn Type N PL 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP Connector; RF; N; Straight; Cable Plug; 50 Ohm; RG-213, 225, 8, 9; Crimp |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 频率 | 0 to 11G | 阻抗 | 50 Ohm |
| 额定电压 | 1500V | 最大频率 | 11GHz |
机械参数
| 直径 | 21 mm | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 电缆组 | RG-214, 225, 393 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Cable |
| 壳体镀层 | Silver | 连接器样式 | N Type |
| 触头材料 | Brass | 总长度 | 36.9 mm |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp or Solder |
| 绝缘材料 - 类型 | Tetrafluoroethylene | 中心触点镀层工艺 | Silver |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | Type N | 连接器性别 | PL |
| 连接类型 | Coaxial Cable | ||
环境参数
| 工作温度 | -65C to 165C | ||
