点击放大查看

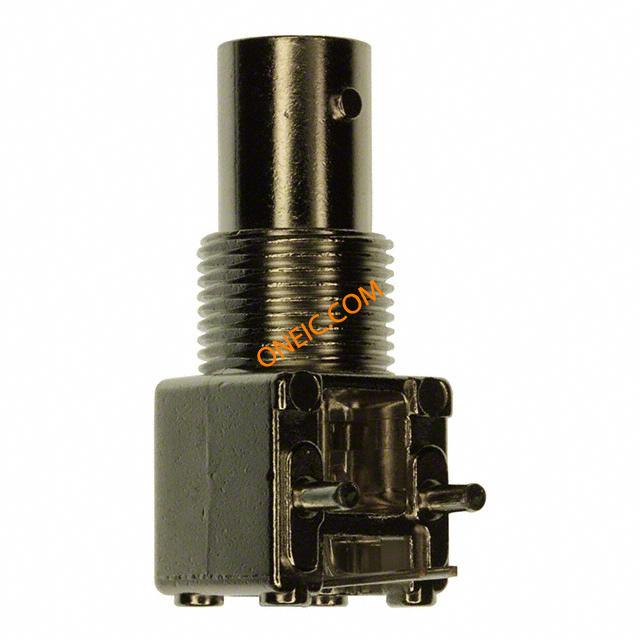

031-5637
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 50 OHM PCB Connector; RF; BNC; Rt. Angle; PCB Jack; 50 Ohm; Nickel Finish |
| 分类 |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 4G | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 4GHz |
机械参数
| 高度 | 13.97 | 包装方式 | Tray |
| 本体表面处理 | Nickel | 端接方式 | Solder |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 总长度 | 35.2 |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 绝缘材料 - 类型 | Polytetrafluoroethylene/Copolymer |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Guide | 连接类型 | PCB |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
文档与媒体
