点击放大查看

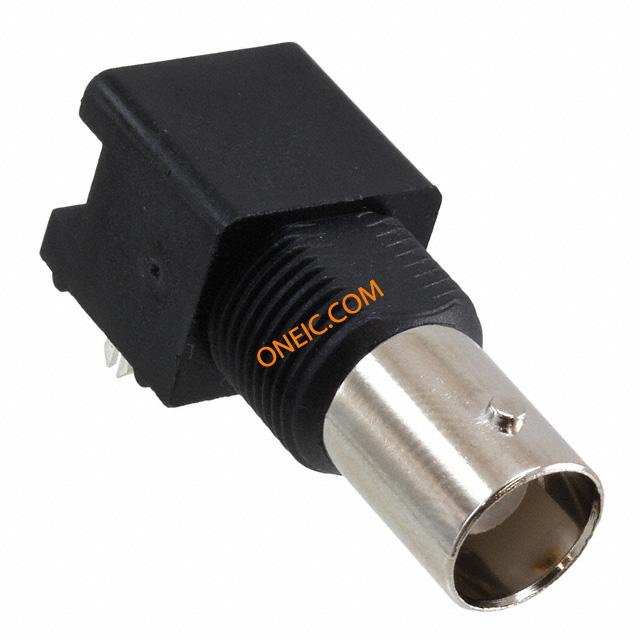

031-5540-1010
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold CONN BNC JACK R/A 50 OHM PCB Connector; RF; BNC; Rt. Angle; PCB Jack; Bulkhead Mount; 50 Ohm; Low Profile |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | ||
机械参数
| 包装方式 | Tray | 本体表面处理 | Nickel |
| 端接方式 | Solder | 基体材料 | Zinc |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 触头材料 | Beryllium Copper|Phosphor Bronze | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polyphenylene Oxide (PPO), Polystyrene (PS) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Copper |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Lock | 连接类型 | PCB |
| 射频系列/标准 | 031-5540-1010 | ||
文档与媒体
PDF 文档
PDF 文档
