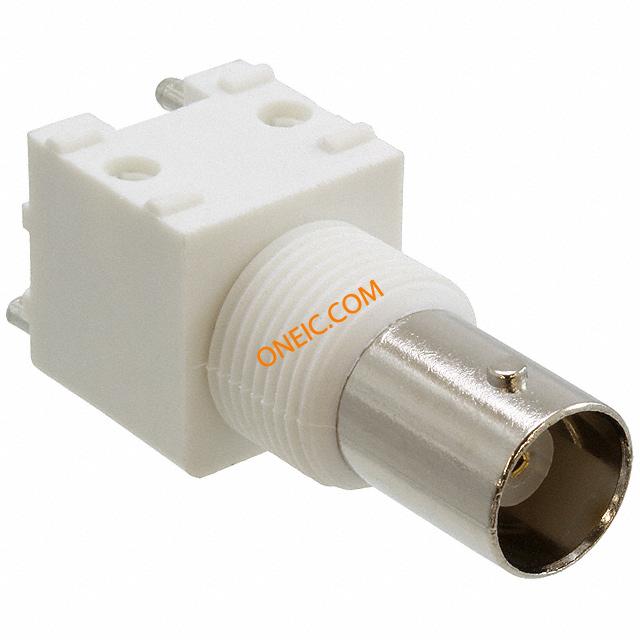

点击放大查看
031-5493
| 制造商 | Amphenol Corporation |
| 描述 | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold CONN BNC JACK STR 50 OHM PCB connector, rf coaxial, bnc vertical pcb blkhd jack recept, isolated, round pins |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 最大频率 | 1GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 端接方式 | Solder | 基体材料 | Zinc Die Cast |
| 外壳颜色 | Silver | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Beryllium Copper|Phosphor Bronze |
| 壳体材料 | Zinc Cast | 主要材料 | BNC |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 产品特性 | Board Guide | 连接类型 | PCB |
| 射频系列/标准 | 031-5493 | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
