点击放大查看

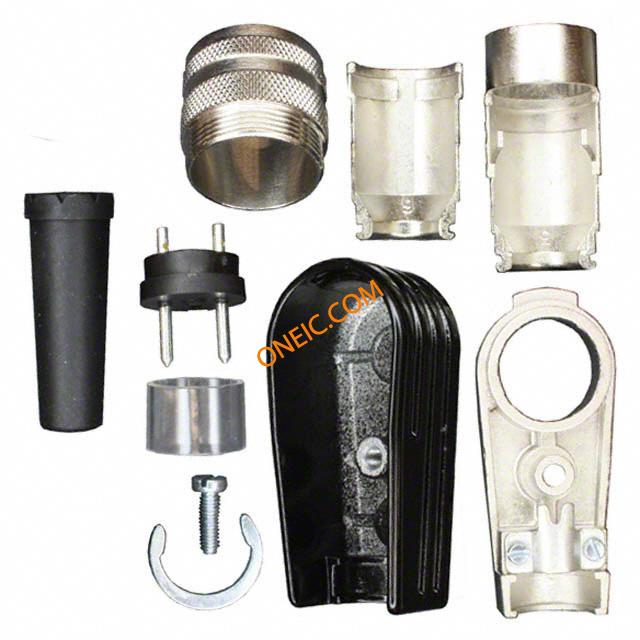

T 3200 005
| 制造商 | |
| 描述 | Circular DIN Connectors 2 Pin Male;R/A Cable Mount CONN MALE 2POS CABLE MNT R/A CONN MALE 2POS INLINE MNT R/A connector, circular din, rt angle male cable conn, 2 silver-pltd solder contact |
| 分类 |
商业参数
| 零件号别名 | 005 3200 T U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 认证机构标志 | UL Recognized/IEC |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 包装方式 | Bulk | 出线方向 | Internal |
| 导线线规 | 20 AWG | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 触头类型 | Pin | 安装类型 | Free Hanging (In-Line), Right Angle |
| 外壳镀层 | Nickel | 行程角度 | Right |
| 电缆直径 | 4 mm to 6 mm | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 封装形式 | Metal |
| 连接器用途 | Threaded | 壳体材料 | Die Cast |
| 主要材料 | DIN | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 介电材料 | Thermoplastic | 位数 | 2 |
| 外壳尺寸-插件 | DIN (180 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
产品信息
| 类型 | Cable Plug | 连接器性别 | Male |
| 产品特性 | Shielded, Strain Relief | 制造商全称 | C091-A Series |
| 产品子类型 | Connectors | 射频系列/标准 | C091A |
环境参数
| 密封等级 | IP 40 | 防护等级 | IP40 |
| 工作温度 | -40°C ~ 100°C | ||
