点击放大查看

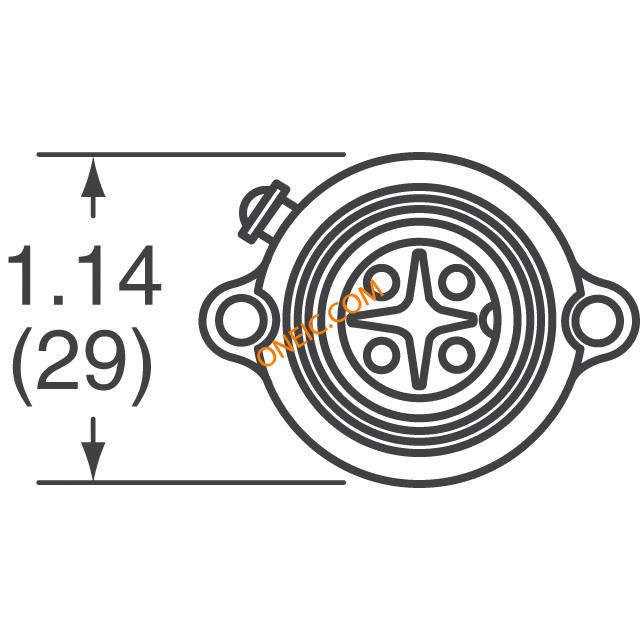

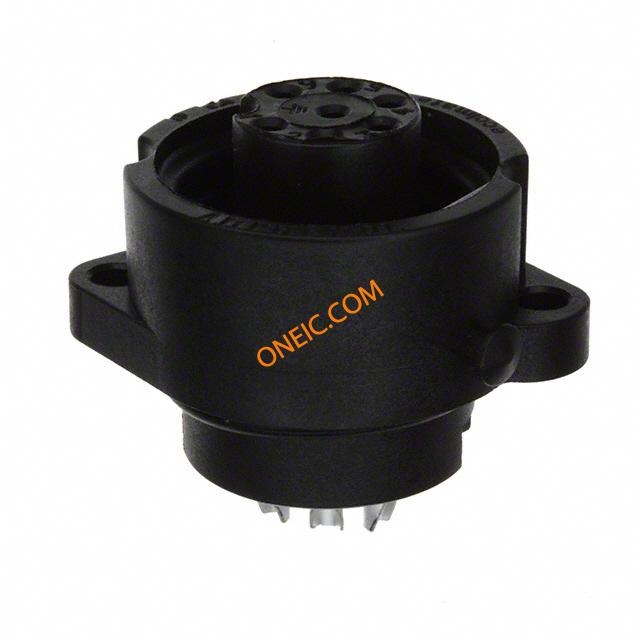

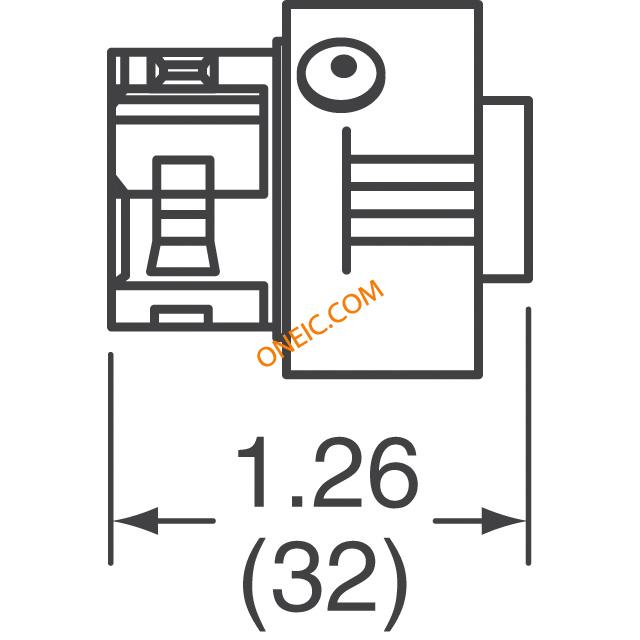

C016 30G006 200 12
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM RECEPT BLK SOLDER GLD CONTACT CONN FEMALE RCPT 6+PE GOLD BLACK SOCKET, PANEL, SOLDER, AU, 6P+E WAY CIRCULAR CONNECTOR RECEPTACLE 6POS PANEL connector, plastic circ, female panel recept, 6+gnd gold pltd cont, solder term, blk |
| 分类 |
商业参数
| 零件号别名 | 81K1498 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250 V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 最大额定电流 | 10 A |
| 绝缘电阻 | :10Mohm | ||
机械参数
| 颜色 | Black | 重量 | 0.021 |
| 包装方式 | Bulk | 导线线规 | :20AWG |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Solder | 重量（g） | 17.60000 |
| 触头类型 | Socket | 安装类型 | Panel Mount |
| 释放力 | :30N | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Panel Plug | 连接器用途 | Threaded |
| 插入角度 | :- | 插入力 | :15N |
| 本体材料 | :Nylon (Polyamide) | 触头材料 | :- |
| 壳体材料 | Polyamide | 主要材料 | DIN |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Black | 触点数 | 6 |
| 接触件端接 | :Solder | 介电材料 | Polyamide |
| 位数 | 7 | 外壳尺寸-插件 | :- |
| 安装孔直径 | 0.866 " | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 安装面板厚度 | :31mm |
| 外部壳体材料 | :Polyamide 6.6/PA6 | 线规或范围 - mm² | :0.75mm² |
| 第一连接器安装类型 | :Panel | 外径-未扩张 | :12.5mm |
产品信息
| 类型 | Cable Socket | 连接器性别 | :Socket |
| 系列 | eco mate | 产品特性 | Screw Locking |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP 67, IP 65 |
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
C016 10K006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE R/A BLUE CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP PLUG, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blue
C016 10H006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRAIGHT BLUE CRIMP CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue
C016 10H006 010 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLUE CRIMP INT STR REL CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue Connector: circular; plug; straight, w/o terminals; male; PIN:7
C016 30H006 210 10
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLUE SODR GLD IN ST RELF CONN MALE PLUG 6+PE GOLD BLUE PLUG, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str male cable conn, 6+gnd gold plt cont, solder term, blue
C016 10K006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE R/A BLACK CRIMP CONN PLUG 6+PE CBL PIN RA CRIMP 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR, PLUG, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle male cable housing, for 6+gnd crimp pin cont, blk R/A,MALE,6+PEBLACKB/A Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插头

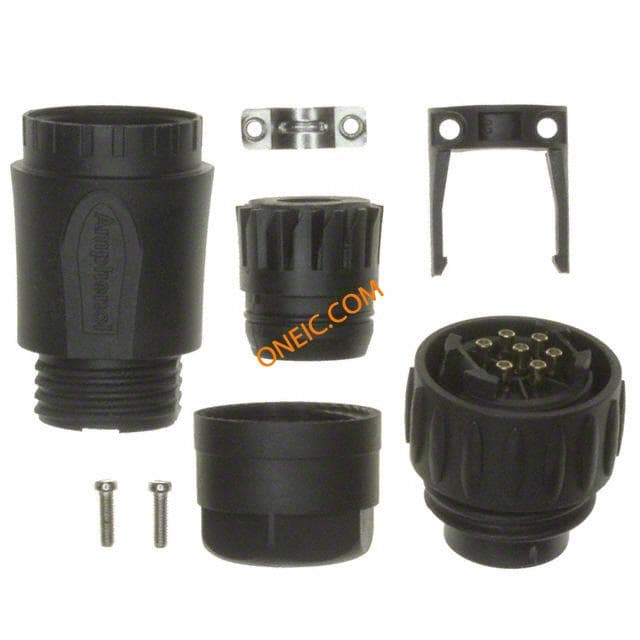

C016 30H006 210 12
