点击放大查看

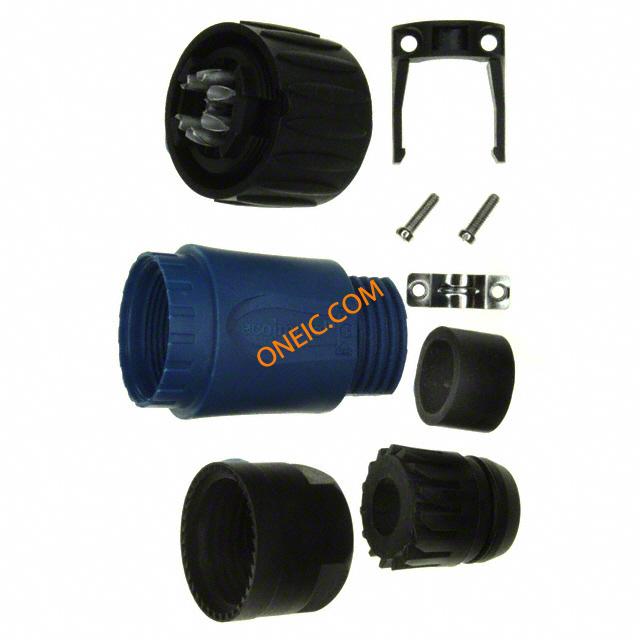

C016 30D006 210 10
| 制造商 | |
| 描述 | Circular DIN Connectors 6+PE FEM STRT BLUE SODR GLD IN ST RELF CONN FEMALE PLUG 6+PE GOLD BLUE SOCKET, FREE, SOLDER, AU, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, blue |
| 分类 |
商业参数
| 产品类别 | Circular DIN Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85389099 | 认证机构 | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 250V | 供电电压 | DIN |
| 接触电阻 | :5mohm | 击穿电压 | :4000V |
| 最大额定电流 | 12A | 绝缘电阻 | :10Mohm |
机械参数
| 颜色 | Blue | 重量 | 0.041 |
| 包装方式 | Bulk | 出线方向 | Internal |
| 导线线规 | :20AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 触头类型 | Socket | 安装类型 | Free Hanging (In-Line) |
| 释放力 | :30N | 行程角度 | Straight |
| 电缆直径 | 6 mm to 12.5 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | :Straight |
| 连接器用途 | Threaded | 插入角度 | :- |
| 插入力 | :15N | 本体材料 | :Nylon (Polyamide) |
| 触头材料 | :- | 壳体材料 | Polyamide |
| 主要材料 | DIN | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Blue / Black |
| 触点数 | 6 | 接触件端接 | :Solder |
| 介电材料 | Polyamide | 位数 | 7 |
| 外壳尺寸-插件 | :- | 外壳材料及表面处理 | Polyamide |
| 典型触点布局 | 6 + 1 Ground (PE) | 外部壳体材料 | :Polyamide 6.6/PA6 |
| 线规或范围 - mm² | :0.75mm² | 第一连接器安装类型 | :Cable |
| 外径-未扩张 | :12.5mm | ||
产品信息
| 类型 | Cable Socket | 连接器性别 | :Socket |
| 系列 | eco mate | 产品特性 | Cable Clamp, Strain Relief |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 插拔次数 | :500 |
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 125°C | ||
