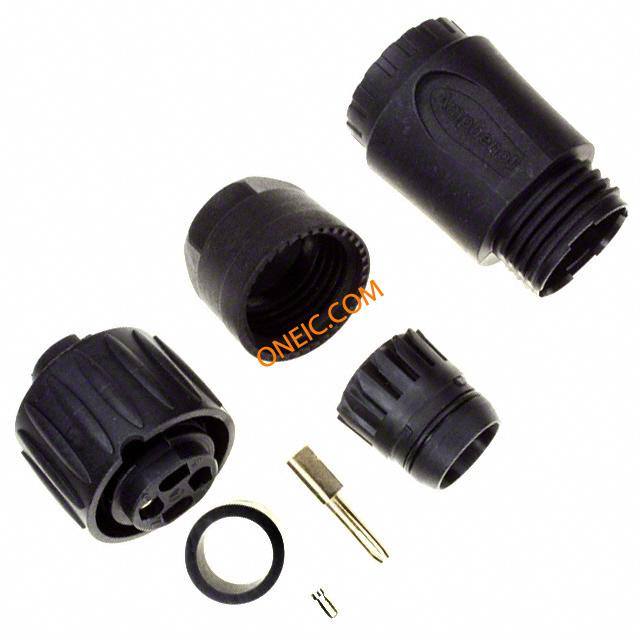

C016 20D003 200 12
| 制造商 | |
| 描述 | Circular DIN Connectors 3+PE FEM STRT BLK SCREW GLD CONTACT CONN FEMALE PLUG 3+PE GOLD BLACK connector;plastic circ;str fem cable conn;3+gnd gold plt cont;screw term;black CIRCULAR CONNECTOR RECEPTACLE 3POS CABLE connector, plastic circ, str fem cable conn, 3+gnd gold plt cont, screw term, black |
| 分类 |
商业参数
| 零件号别名 | 81K1468 | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 认证机构标志 | UL Recognized/CSA/VDE | 材料阻燃等级 | UL94-V0 |
电气参数
| 额定电压 | 400 V | 供电电压 | DIN |
| 最大额定电流 | 16 A | ||
机械参数
| 颜色 | Black | 重量 | 0.041 |
| 包装方式 | Bulk | 导线线规 | 20-14 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Screw | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 电缆直径 | 6 mm to 10 mm | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | Plastic |
| 连接器用途 | Threaded | 插入角度 | :- |
| 本体材料 | :Nylon (Polyamide) | 壳体材料 | Polyamide |
| 主要材料 | DIN | 端接样式 | Screw |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 介电材料 | Polyamide | 位数 | 4 |
| 外壳材料及表面处理 | Polyamide | 典型触点布局 | 3 + 1 Ground (PE) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | Cable Socket | 连接器性别 | :Receptacle |
| 系列 | eco mate | 产品特性 | Cable Clamp |
| 制造商全称 | C016 Series | 产品子类型 | Connectors |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP 67, IP 65 |
| 工作温度 | -40°C ~ 100°C | ||
文档与媒体
相关型号
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

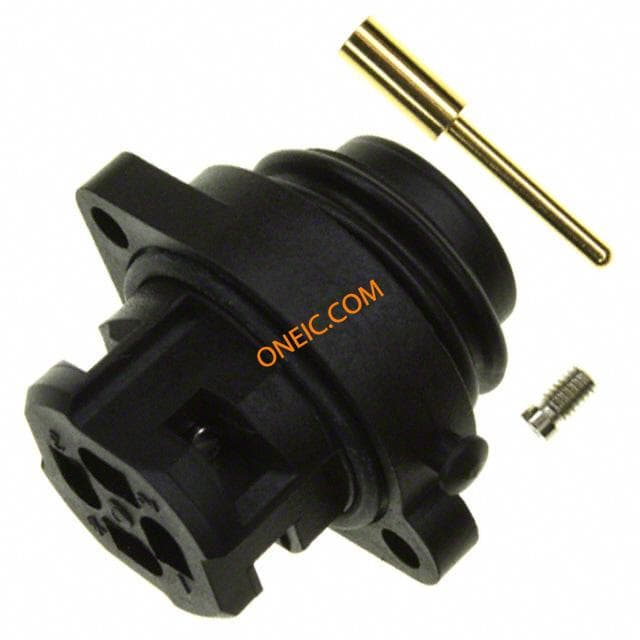

C016 20C003 200 12
