点击放大查看

C016 10D006 010 10

制造商	Amphenol Corporation
描述	Circular DIN Connectors 6+PE FEM STRT BLUE CRIMP INT STR REL CONN PLUG 7POS CABLE SKT CRIMP SOCKET, FREE, CRIMP, 6+PE WAY connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, blue
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	C01610D00601010	产品类别	Circular DIN Connectors
标准包装数量	250	工厂包装数量	50

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85389099	认证机构	:CSA, GERMANISCHER LLOYDS, SEV, UL, VDE
认证机构标志	UL Recognized/CSA/VDE	材料阻燃等级	:UL94V-0

电气参数

额定电压	250 V	供电电压	DIN
接触电阻	:5mohm	最大额定电流	13 A
绝缘电阻	:10Mohm

机械参数

颜色	Blue	重量	0.038
包装方式	Bulk	出线方向	Internal
导线线规	:0.14mm²	方向	Keyed
外壳样式	Receptacle	端接方式	Crimp
重量（g）	37.20000	触点尺寸	1.6mm
触头类型	Crimp	安装类型	Free Hanging (In-Line)
释放力	:30N	行程角度	Straight
电缆直径	6-12.5 mm	连接器类型	Plug for Female Contacts
接触镀层	Silver / Gold	紧固类型	Threaded
封装形式	Plastic	连接器用途	Threaded
插入角度	:-	插入力	:15N
本体材料	:Nylon (Polyamide)	触头材料	:-
壳体材料	Polyamide	主要材料	DIN
端接样式	Crimp	第一触头极性	Socket (Female)
连接器颜色	:Blue / Black	触点数	6
接触件端接	:Crimp	介电材料	Polyamide
位数	7	外壳尺寸-插件	:-
外壳材料及表面处理	Polyamide	典型触点布局	6 + 1 Ground (PE)
外部壳体材料	:Polyamide 6.6/PA6	线规或范围 - mm²	:1.5mm²
第一连接器安装类型	:Cable	外径-未扩张	:12.5mm

产品信息

备注	Contacts Not Provided	类型	Cable Socket
连接器性别	:Socket	系列	eco mate
产品特性	Cable Clamp, Strain Relief	制造商全称	C016 Series
产品子类型	Connectors	应用细节	Commercial

环境参数

密封等级	IP 67	插拔次数	:500
NEMA 机架尺寸	:IP67	防护等级	IP65/67 - Dust Tight, Water Resistant, Waterproof
工作温度	:+125°C

文档与媒体

PDF 文档

Ecomate Circular Connectors

PDF 文档

1719179.pdf

PDF 文档

28_ecomate_052009_e.pdf

相关型号

C016 10H006 010 10

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE STRT BLUE CRIMP INT STR REL CONN PLUG 6+PE CABLE PIN CRIMP PLUG, FREE, CRIMP, 6P+E WAY connector, plastic circ, str male cable housing, for 6+gnd crimp pin cont, blue Connector: circular; plug; straight, w/o terminals; male; PIN:7

¥26.6560

详情

C016 00V000 010 12

Amphenol Tuchel

Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列插头 IP65 防尘盖

¥18.1200

详情

C016 10C006 000 12

Amphenol Tuchel

Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

¥14.5044

详情

暂无图片

C016 G09 042 G10 X

Amphenol Tuchel

Circular DIN Connectors R/A BACK SHELL BLUE 10 PC BAG BACKSHELL RT ANG BLUE

¥318.9200

详情

暂无图片

C016 G09 041 G10 X

Amphenol Tuchel

Circular DIN Connectors R/A BACK SHELL BLK 10 PC BAG BACKSHELL RT ANG BLACK

¥245.9560

详情

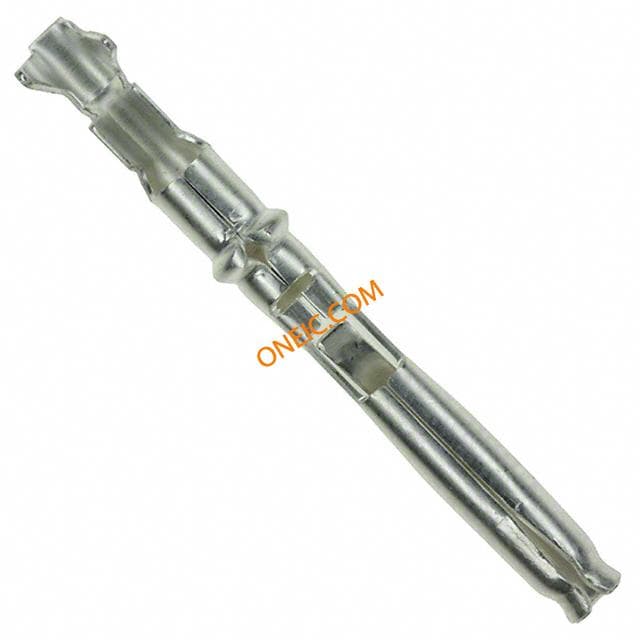

VN02 016 0003 1
