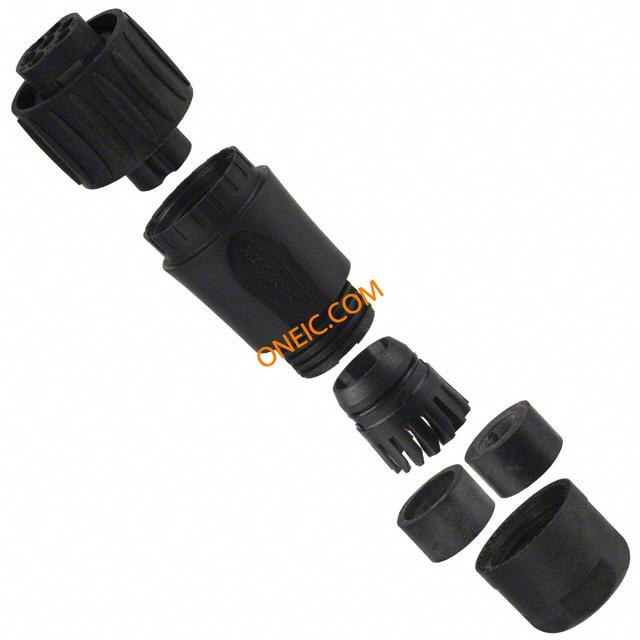

C016 10D006 000 12

制造商	Amphenol Corporation
描述	Circular DIN Connectors 6+PE FEMALE STRAIGHT BLACK CRIMP Conn Circular F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN FMLE PLUG 6+PE BLACK connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, black Connector: circular; plug; w/o terminals; female; PIN:7; IP65,IP67
分类	连接器解决方案圆形连接器军用圆形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular DIN Connectors	标准包装数量	50
工厂包装数量	50

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
认证机构标志	UL Recognized/CSA/VDE	材料阻燃等级	UL94-V0

电气参数

额定电压	250 V	供电电压	DIN
最大额定电流	13 A	连接器类型 - 电压输入	w/o terminals

机械参数

颜色	Black	重量	0.04 kg
直径	30	包装方式	Bulk
出线方向	Yes	导线线规	26-16
方向	Keyed	外壳样式	Receptacle
端接方式	Crimp	触点形式	Crimp
触点尺寸	1.6mm	触头类型	6Signal/1Ground
安装类型	Cable Mount	外壳镀层	Polyamide (PA)
行程角度	Straight	电缆直径	6-12.5 mm
连接器类型	Plug for Female Contacts	接触镀层	Silver/Gold
紧固类型	Threaded	安装样式	Wire
封装形式	Plastic	连接器用途	Threaded
锁定特性	threaded joint, internal thread	壳体材料	Polyamide
总长度	73	包装数量	5
主要材料	DIN	连接器 - 电缆	plug
端接样式	Crimp	第一触头极性	F
连接器颜色	black	触点数	7
介电材料	Polyamide	位数	7
外壳材料及表面处理	Polyamide	典型触点布局	6 + 1 Ground (PE)
第一连接器安装特征	6+PE

产品信息

SPG	5	备注	Contacts Not Provided
类型	Circular	连接器性别	PL
系列	Eco\|mate™ C016	产品特性	Cable Clamp
主要用途	Cable Clamp	制造商全称	C016 Series
产品子类型	Connectors	适配器系列	ECOMATE (C016)
单元数量	1	射频系列/标准	C016
输出配置	Free Hanging (In-Line)	应用细节	Commercial

环境参数

密封等级

IP 67

防护等级

IP65/67 - Dust Tight, Water Resistant, Waterproof

文档与媒体

PDF 文档

Ecomate Circular Connectors

PDF 文档

28_ecomate_052009_e.pdf
