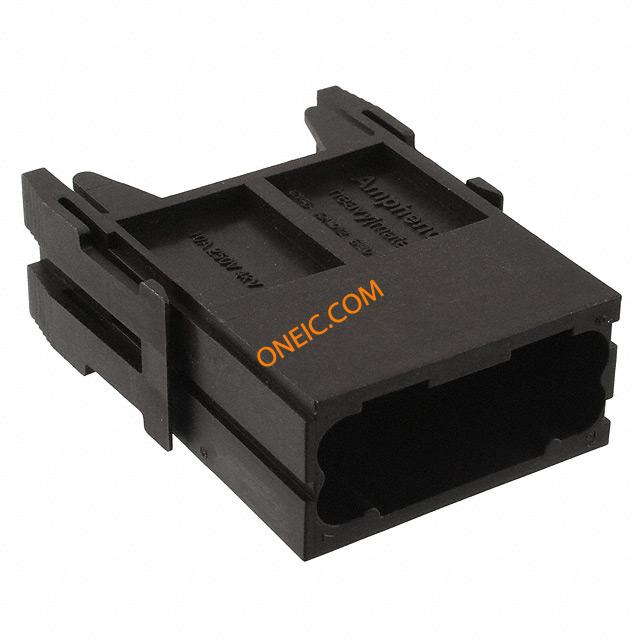

点击放大查看
C146 10A012 500 15
| 制造商 | |
| 描述 | PIN INSERT 12POS MODULE, PLUG, 12 WAY, CRIMP RECTANGULAR INSERT, PLUG, 12POS, CRIMP MODULE MALE 12POS CRIMP Amphenol 2行 12针 12P极 插头 电源连接器 , 电缆安装 12P MALE CONNECTOR |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | ||
机械参数
| 颜色 | Black | 重量 | 0.011 |
| 包装方式 | Bulk | 触头类型 | heavy|mate®, C146 D, DD, M |
| 连接器类型 | Module without Contacts | 接触镀层 | :- |
| 排数 | :2 | 插入件材料 | :Signal |
| 壳体材料 | Polyamide (PA66), Nylon 6/6, Glass Filled | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 触点数 | :12 |
| 位数 | 12 | 外壳尺寸-插件 | :- |
产品信息
| 连接器性别 | Male | 系列 | :Heavy Mate |
| 适用产品/相关产品 | :C146 heavy mate F Series Turned Crimp Contacts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
文档与媒体
相关型号
VN01 016 0024 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector comp;machined pin contact for 146d-series insert;for 26-22 awg wire CONTACT, PIN, 26-22AWG, CRIMP connector comp, machined pin contact for146d-series insert, for 26-22 awg wire TURNED CRIMP CONTACT AWG 26-22
VN01 016 0025 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS CONTACT, PIN, 20AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 20 awg wire TURNED CRIMP CONTACT AWG 20
VN01 016 0026 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector comp;machined pin contact for 146d-series insert;for 20-18 awg wire CONTACT, PIN, 20-16AWG, CRIMP connector comp, machined pin contact for146d-series insert, for 20-18 awg wire TURNED CRIMP CONTACT AWG 20-16
VN01 016 0027 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector component;machined pin contact for 146d-series insert;for 16 awg wire CONTACT, PIN, 16-15AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 16 awg wire TURNED CRIMP CONTACT AWG 16-15
VN01 016 0028 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector component;machined pin contact for 146d-series insert;for 14 awg wire CONTACT, PIN, 14AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 14 awg wire TURNED CRIMP CONTACT AWG 14
C146 10B012 500 15
Amphenol-Tuchel Electronics
SOCKET INSERT 12POS RECTANGULAR INSERT, RECEPTACLE, 12POS, CRIMP MODULE, RECEPTACLE, 12 WAY, CRIMP MODULE FEMALE 12POS CRIMP Amphenol 2行 12针 12P极 插座 电源连接器 , 电缆安装 12P FEMALE CONNECTOR
