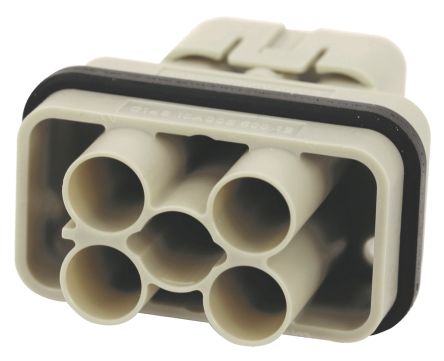

C146 10A006 500 12
| 制造商 | |
| 描述 | PIN CONNECTOR 6POS INSERT MALE 4+2POS+1GND CRIMP Amphenol 3行 4/2针 6P极 插头 电源连接器 , 电缆安装 |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 690 V | ||
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 方向 | 直 | 安装类型 | 电缆安装 |
| 连接器类型 | Insert without Contacts | 接触镀层 | 银 |
| 排数 | 3 | 触头材料 | 铜合金 |
| 壳体材料 | Polycarbonate (PC) | 端接排数 | 压接 |
| 端接样式 | Crimp | 触点数 | 4/2 |
| 位数 | 4+2+Ground | ||
产品信息
| 类型 | Q 型插件 | 连接器性别 | Male |
| 极性 | 6P | 测量范围 | Heavy Mate |
| 基础产品编号 | C146 | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
VN01 016 0024 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector comp;machined pin contact for 146d-series insert;for 26-22 awg wire CONTACT, PIN, 26-22AWG, CRIMP connector comp, machined pin contact for146d-series insert, for 26-22 awg wire TURNED CRIMP CONTACT AWG 26-22
VN01 016 0025 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS CONTACT, PIN, 20AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 20 awg wire TURNED CRIMP CONTACT AWG 20
VN01 016 0026 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector comp;machined pin contact for 146d-series insert;for 20-18 awg wire CONTACT, PIN, 20-16AWG, CRIMP connector comp, machined pin contact for146d-series insert, for 20-18 awg wire TURNED CRIMP CONTACT AWG 20-16
VN01 016 0027 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector component;machined pin contact for 146d-series insert;for 16 awg wire CONTACT, PIN, 16-15AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 16 awg wire TURNED CRIMP CONTACT AWG 16-15
VN01 016 0028 1C
Amphenol-Tuchel Electronics
PIN CONTACT 100 PCS connector component;machined pin contact for 146d-series insert;for 14 awg wire CONTACT, PIN, 14AWG, CRIMP connector component, machined pin contact for 146d-series insert, for 14 awg wire TURNED CRIMP CONTACT AWG 14
C146 10R008 606 12
Amphenol-Tuchel Electronics
HOOD METRIC CONN HOOD TOP ENTRY M25 Amphenol Heavy Mate C146 系列 电源连接器 , 电缆安装
C146 10F008 001 12
Amphenol-Tuchel Electronics
BULKHEAD HOUSING 8POS CONN BASE BOTTOM ENTRY Amphenol 电源连接器 , 面板安装
C146 10B006 500 12
Amphenol-Tuchel Electronics
SOCKET INSERT 6POS INSERT FEMALE 4+2POS+1GND CRIMP Amphenol 3行 6针 6P极 插座 电源连接器 , 电缆安装
VN01 040 0010 1C
Amphenol-Tuchel Electronics
CRIMP CONTACT PIN 16 AWG CONTACT, PIN, 16 AWG, CRIMP CONT PIN CRIMP 16AWG SILVR 4.0MM Amphenol Heavy Mate K 系列 1 路 公插 触点 , 额定电流 80A/ 690/160 V, 适用于F K Q 型模块
VN01 040 0011 1C
Amphenol-Tuchel Electronics
CRIMP CONTACT PIN 14 AWG CONTACT, PIN, 14 AWG, CRIMP CONT PIN CRIMP 14AWG SILVR 4.0MM Amphenol Heavy Mate K 系列 1 路 公插 触点 , 额定电流 80A/ 690/160 V, 适用于F K Q 型模块
VN01 040 0012 1C
Amphenol-Tuchel Electronics
CRIMP CONTACT PIN 12 AWG CONTACT, PIN, 12 AWG, CRIMP CONT PIN CRIMP 12AWG SILVR 4.0MM Amphenol Heavy Mate K 系列 1 路 公插 触点 , 额定电流 80A/ 690/160 V, 适用于F K Q 型模块
VN01 040 0013 1C
Amphenol-Tuchel Electronics
CRIMP CONTACT PIN 10 AWG CONTACT, PIN, 10 AWG, CRIMP CONT PIN CRIMP 10AWG SILVR 4.0MM Amphenol Heavy Mate K 系列 1 路 公插 触点 , 额定电流 80A/ 690/160 V, 适用于F K Q 型模块
