点击放大查看

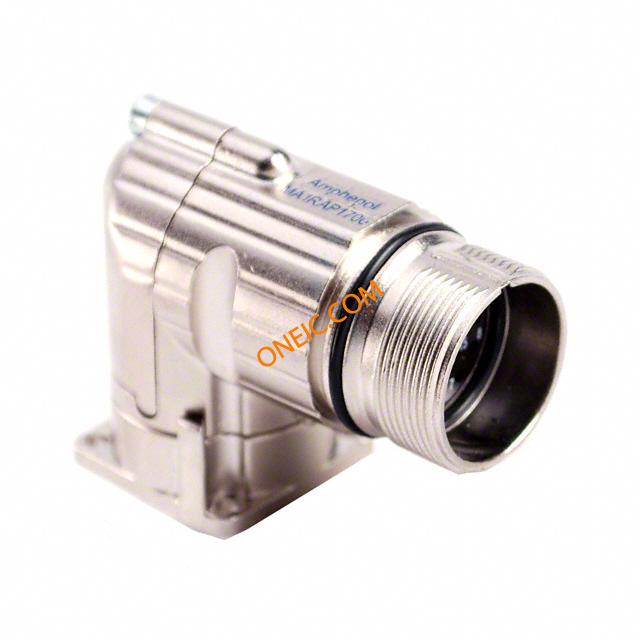

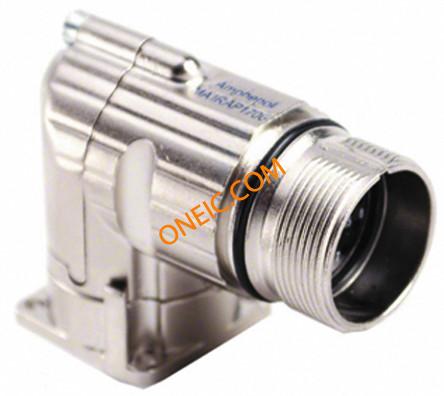

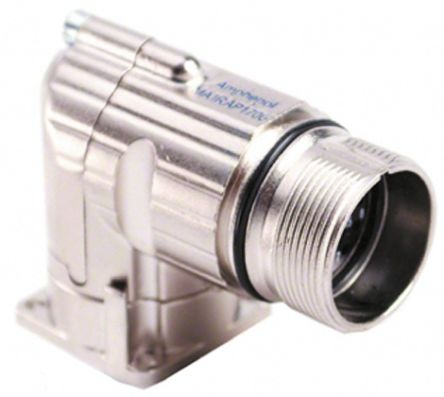

MA1RAP1700
| 制造商 | |
| 描述 | Conn Circular PIN 17 POS RA Panel Mount 17 Terminal 1 Port CONN RCPT 17POS MALE TYPE P R/A 17 Pole Female Right Angle Panel Mount Industrial & Automation Circular Connector with Male Contacts QRATE Amphenol 17路 面板安装 直角 连接器 插座 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 889-1082 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 125 V ac/dc | ||
机械参数
| 包装方式 | Bulk | 方向 | P |
| 触点尺寸 | 1.0mm | 触头类型 | Crimp |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle for Male or Female Contacts |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 触头材料 | Brass | 第一触头极性 | Male |
| 触点数 | 17 | 位数 | 17 |
| 外壳尺寸-插件 | M23-17 | 外壳材料及表面处理 | Zinc Die Cast |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular |
| 连接器性别 | RCP | 产品特性 | Shielded |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | +130°C |
