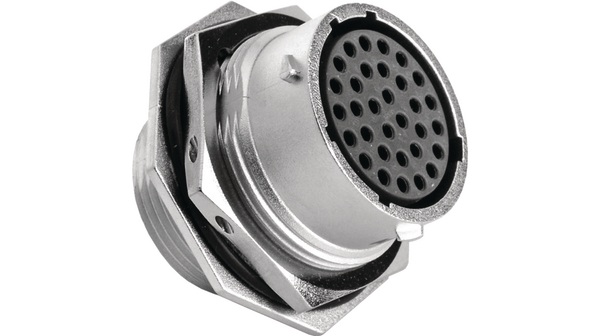

RT0718-32SNH

制造商	Amphenol Corporation
描述	CONN HSG RCPT 32POS JAM NUT SKTS Jam nut receptacle RT360 Poles=32 Female Housing size18, RT0718-32SNH, Amphenol

对参数有疑问？问 AI 助手

商业参数

标准包装数量

100

电气参数

额定电压	150	极数	32
最大额定电流	5 A	保护电压（VP）（2416）	IP 67

机械参数

包装方式	Bulk	外壳尺寸	18
方向	N (Normal)	触点形式	Crimp
触点尺寸	20	触头类型	Crimp
安装类型	Panel Mount, Bulkhead - Front Side Nut	连接器类型	Receptacle for Female Contacts
紧固类型	Bayonet Lock	锁定特性	Bayonet locking
壳体材料	Zinc Alloy	触点数	Size 20
位数	32	外壳尺寸-插件	18-32
第一连接器极性	Female	外壳材料及表面处理	Zinc Die Cast, Nickel Plated

产品信息

备注	Contacts Not Provided	系列	RT360™, RT
输出配置	Panel Mount, Bulkhead - Front Side Nut

环境参数

防护等级

IP67/68 - Dust Tight, Waterproof

工作温度

-40...+105 °C
