79875
| 制造商 | Amphenol Corporation |
| 描述 | RF コネクタ STRAIGHT CLAMP PLUG connector;rf coaxial;tnc str plug;clamp/solder;rg55;58;141;142;223;400;50 ohm RF Connectors / Coaxial Connectors STRAIGHT CLAMP PLUG |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 000-79875 713-8650 77B6498 |
| 产品类别 | RF Connectors / Coaxial Connectors | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 阻抗 | 50 Ohms | 耦合系数 | Threaded |
| 最大频率 | 4 GHz | ||
机械参数
| 重量 | 0.480008 oz | 电缆类型 | RG-55, RG-58, RG-141, RG-142, RG-223, RG-400 |
| 本体表面处理 | Nickel | 方向 | Straight |
| 基体材料 | Brass | 接触镀层 | Silver |
| 触头材料 | Brass | 端接样式 | Cable - Clamp |
| 接触件端接 | Solder | 供应商器件封装 | Straight |
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | TNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
8240 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK CABLE, COAXIAL, RG-58A/U, 1000FT, BLACK RG-58A/U Type Coax cable, 20 AWG solid .033" bare copper conductor, polyethylene insulation, tinned copper braid shield, 1000’ boxes, PVC jacket, 30V, 80C
8240 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK Coax - RG-58A/U type, 20 AWG solid .033" bare copper conductor, polyethylene insulation, 500’ boxes, tinned copper braid shield, PVC jacket
9201 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58/U, 500FT, BLACK Coax - RG-58/U Type 20 AWGPE BRD PVCRG58/U Type Black
8259 010U500
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 500ft BOX BLACK COAXIAL CABLE, RG-58A/U, 500FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black
8259 010U1000
Belden Wire & Cable
Coaxial Cables 20AWG 1C SHIELD 1000ft BOX BLACK COAXIAL CABLE, RG-58A/U, 1000FT, BLACK Coax - RG-58A/U Type RG-58A/U 50 OHMS Coax Black

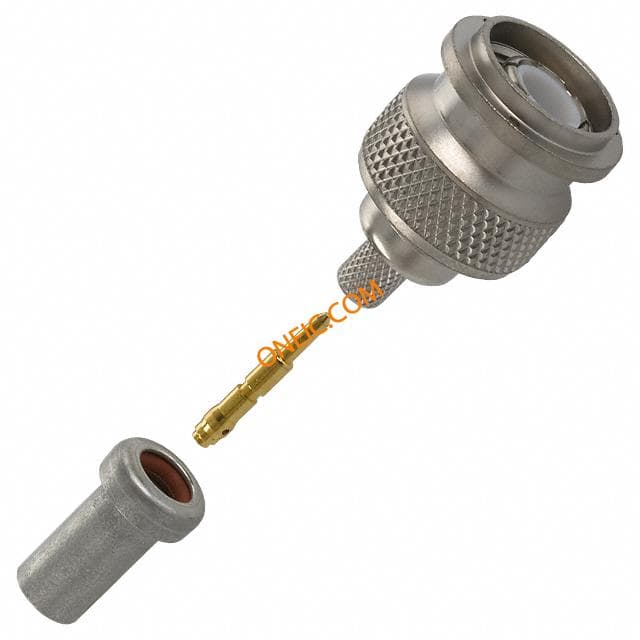

5225555-2
