31-5849-RFX
| 制造商 | |
| 描述 | RF Connectors R/A PLG LMR400/7807A RF Connectors / Coaxial Connectors R/A PLG LMR400/7807A RF/COAXIAL, TNC PLUG, R/A, 50 OHM, CRIMP 31-5849-RFX TNC Male Crimp Connector, Right Angle, Cable Group C, Amphenol |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Connectors | 零件号别名 | 031-5849-RFX 73K1445 |
| 产品类别 | RF Connectors / Coaxial Connectors | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohms | 耦合系数 | Threaded |
| 最大频率 | 11 GHz | ||
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58C, RG-141, Belden 7806A, Belden 89907 | 本体表面处理 | Nickel |
| 方向 | Right Angle | 重量（g） | 24.00000 |
| 基体材料 | Brass | 连接器类型 | :TNC Coaxial |
| 接触镀层 | Gold | 触头材料 | Brass |
| 端接样式 | Cable - Crimp | 接触件端接 | Crimp |
| 供应商器件封装 | Right Angle | ||
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | TNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
PDF 文档
相关型号
7807A 0101000
Belden Wire & Cable
Coaxial Cables 17AWG 1C SHIELD 1000ft SPOOL BLACK BLACK RG58 (RF200) TYPE-17AWG-SOLID .044 IN. BARE COPPER-DUOFOIL+95%-TIN COPPR B Coax - RG-58 Type RF200 Wireless 50 OHM Coax PE Black
¥4495.5480
详情
7807R 010500
Belden Wire & Cable
Coaxial Cables 17AWG 1C SHIELD 500ft SPOOL BLACK RG-58, 17 AWG SOLID .044 IN. BARE COPPER, DUOFOIL, GAS INJECTED FOAM HDPE, BLACK
¥2700.9600
详情

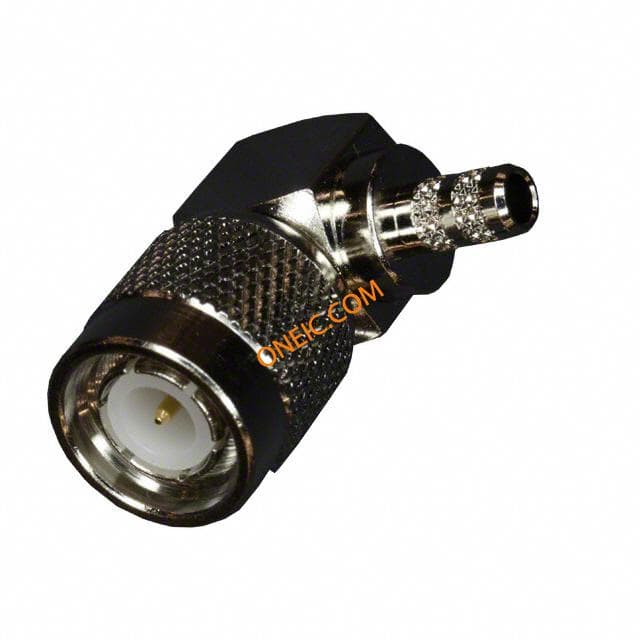

122140
