点击放大查看

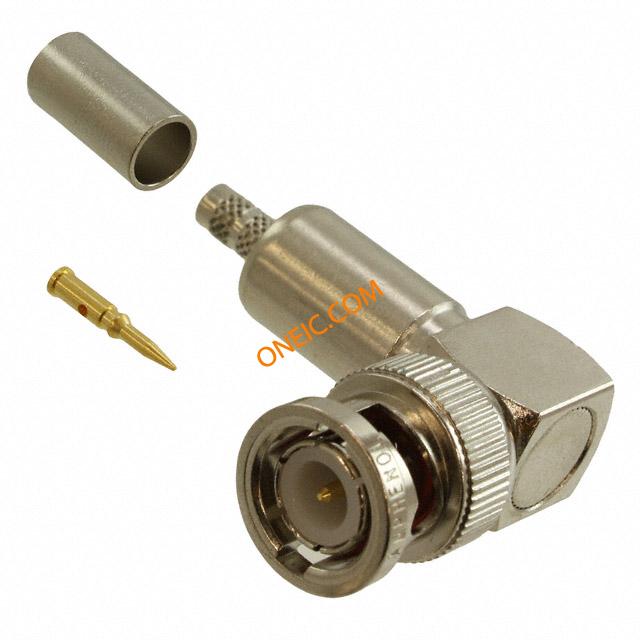

31-335-RFX
| 制造商 | |
| 描述 | RF Connectors R/A CRMP PLG 58 141 LMR195 BELDEN 7806A CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc commercial rt angle plug;crimp-crimp;rg58;141;50 ohm RF Connectors / Coaxial Connectors R/A CRMP PLG 58 141 LMR195 BELDEN 7806A Conn BNC PL 0Hz to 4GHz 50Ohm Crimp RA Cable Mount Gold RF/COAXIAL, BNC PLUG, R/A, 50 OHM, CRIMP |
| 分类 |
商业参数
| 产品 | Connectors | 零件号别名 | 031-335-RFX 713-9034 93F7553 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Bayonet | 最大频率 | 4GHz |
机械参数
| 重量 | 0.023 | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-141 | 本体表面处理 | Nickel |
| 电缆组 | RG-58, 58C, 141, Belden 89907, 7806A | 方向 | Right Angle |
| 重量（g） | 26.00000 | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line), Right Angle |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC, RFX |
| 触头材料 | Phosphor Bronze | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | 供应商器件封装 | Right Angle |
产品信息
| 连接器性别 | Plug | 极性 | Standard |
| 射频系列/标准 | BNC | ||
环境参数
| 插拔次数 | 500 | 工作温度 | -65°C ~ 165°C |
文档与媒体
