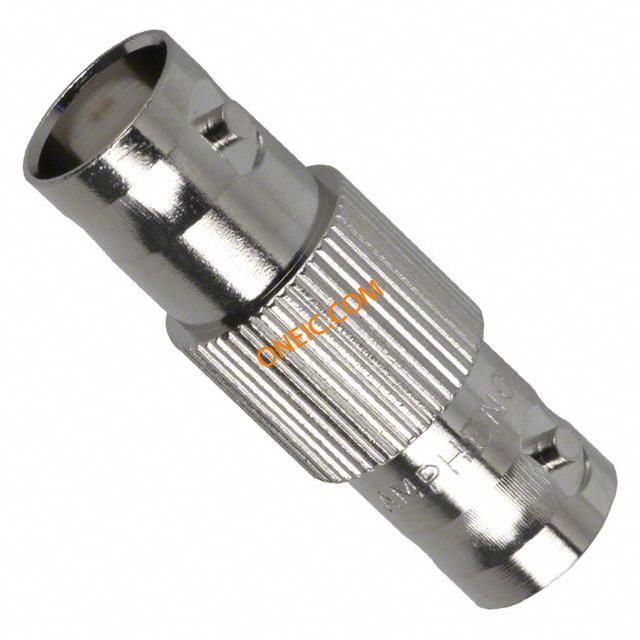

31-219-RFX
| 制造商 | |
| 描述 | RF Adapters - In Series ADAPT STRT JCK/JCK BNC ADAPTER - JACK TO JACK connector;rf coaxial;bnc commercial in-series adapter;str jack to jack;50 ohm Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Silver Straight jack-jack, 50 ohms |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 031-219-RFX 16R0554 713-9105 93F1408 | 产品类别 | RF Adapters - In Series |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 阻抗 | 50 Ohm | 转换速率 | Same Series |
| 最大频率 | 4GHz | 频率范围 | DC to 4 GHz |
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 重量（g） | 12.00000 | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Nickel |
| 接触镀层 | Silver | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 第一连接器极性 | Jack (Female) | 第二连接器性别 | Jack (Female) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | STRAIGHT COUPLER | 样式 | Straight |
| 适配器类型 | Jack to Jack | 中心极性 | Female to Female |
| 适配器系列 | BNC to BNC | 射频系列/标准 | BNC |
| 转换端（适配器端） | BNC Jack, Female Socket | 转换自（适配器端） | BNC Jack, Female Socket |
环境参数
| 插拔次数 | 500 | ||
