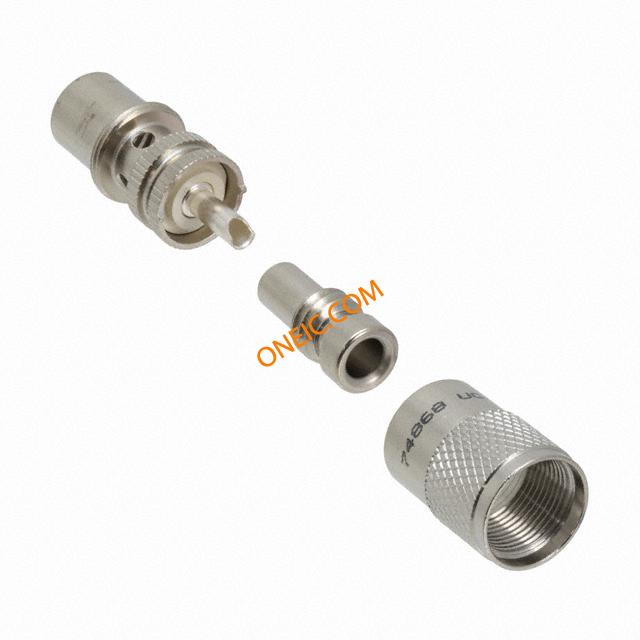

083-750
| 制造商 | |
| 描述 | CONN UHF PLUG STR SOLDER connector, rf coaxial, uhf str plug, solder/solder, for rg59, 62, 140, 210 cable |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant Part | ||
电气参数
| 阻抗 | Non-Constant | 额定电压 | 500V |
| 最大频率 | 300MHz | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG/U 59,62,140,210 |
| 电缆组 | RG-59, 62, 140, 210 | 端接方式 | Solder |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 连接器样式 | UHF |
| 连接器用途 | Threaded | 触头材料 | Beryllium Copper |
| 壳体材料 | Brass | 主要材料 | UHF |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | TFE | 中心触点镀层工艺 | Silver |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | Cable Plug | 连接器性别 | Female |
| 应用细节 | True MIL | ||
环境参数
| 结工作温度 | 165 °C | ||
