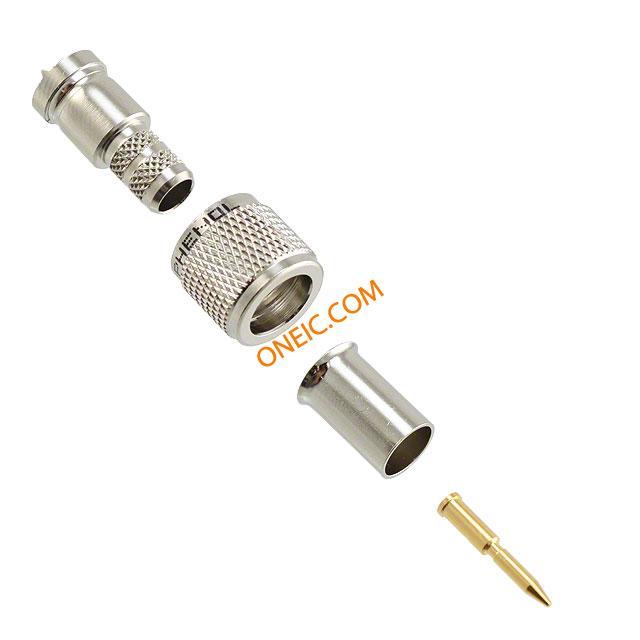

点击放大查看
081-114-RFX
| 制造商 | |
| 描述 | CONN PLUG MINI-UHF RG8X CONN MINI UHF PLUG 50 OHM CRIMP connector, rf coaxial, mini-uhf commercial str plug, crimp-crimp, belden 9258, rg8x |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant Part | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 335V |
| 最大频率 | 2.5GHz | ||
机械参数
| 包装方式 | Bulk | 本体表面处理 | Nickel |
| 电缆组 | RG-8X, Belden 9258 | 端接方式 | Crimp |
| 外壳颜色 | Silver | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Tin-Lead | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 连接器样式 | UHF, Mini, RFX |
| 连接器用途 | Threaded | 壳体材料 | Brass |
| 主要材料 | Mini-UHF | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polypropylene (PP) |
| 中心触点镀层工艺 | Tin-Lead | 中心触点材料 | Brass |
产品信息
| 类型 | Cable Plug | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
