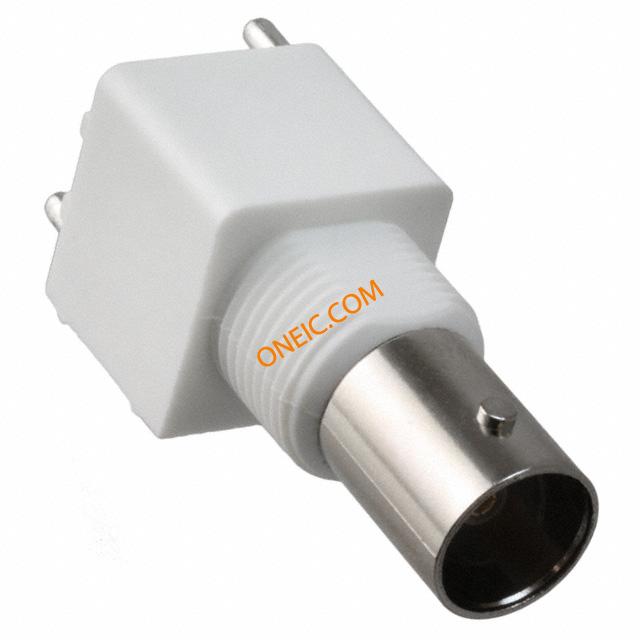

031-71058
| 制造商 | Amphenol Corporation |
| 描述 | CONN BNC JACK STR 75 OHM PCB Connector; RF; BNC; Straight; PCB Jack; Bulkhead Mnt; 75 Ohm; Nickel/Gold |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 阻抗 | 75 Ohm | 额定电压 | 500V |
| 最大频率 | 1GHz | ||
机械参数
| 包装方式 | Tray | 本体表面处理 | Nickel |
| 基体材料 | Zinc Die Cast | 外壳颜色 | White |
| 安装类型 | Panel Mount, Bulkhead; Through Hole | 连接器类型 | Jack, Female Socket |
| 紧固类型 | Bayonet Lock | 连接器样式 | BNC |
| 屏蔽层端接方式 | Solder | 接触件端接 | Solder |
| 介电材料 | Polypropylene (PP) | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 产品特性 | Board Guide, Isolated | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
