RJF5442M1
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e SQUARE FLANGE RECEPTACLE 554 COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJ45 Push-Pull Recpt Metallized Plastic connector, metalized plastic, square flange panel recept, rj45 ethernet, black |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 最小起订量 | 100 | 单位包装 | 100 |
| 其他名称 | APC1008 | 零件号别名 | 308-0027 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | ||
机械参数
| 颜色 | Black | 屏蔽 | Unshielded |
| 重量（g） | 18.00000 | 安装类型 | Panel Mount |
| 连接器类型 | Socket | 安装样式 | Panel |
| 主要材料 | Ethernet | 端接样式 | Solder Terminal |
| 外壳材料及表面处理 | Plastic, Metallized | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJF 544 | 产品特性 | Push Pull Coupling |
| 匹配码 | RJF5442M1 | USOC 编码 | RJ45 |
| 制造商全称 | RJF 544 Series | 端口数 | 1 |
| 标准交期 | 11 weeks | 性能类别 | Cat 5e, Class D |
| 应用细节 | For telecom equipments, video control, robotics, industrial process control, CNC machines, special machines, motion control and tele-maintenances | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

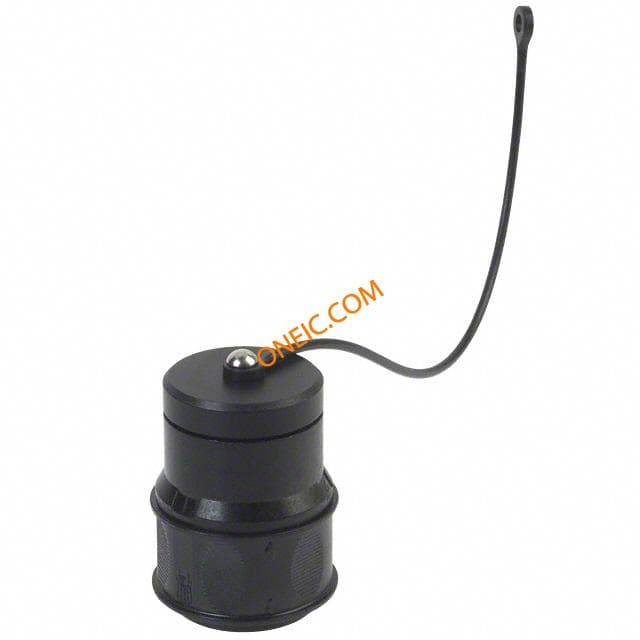

54402BE
