点击放大查看

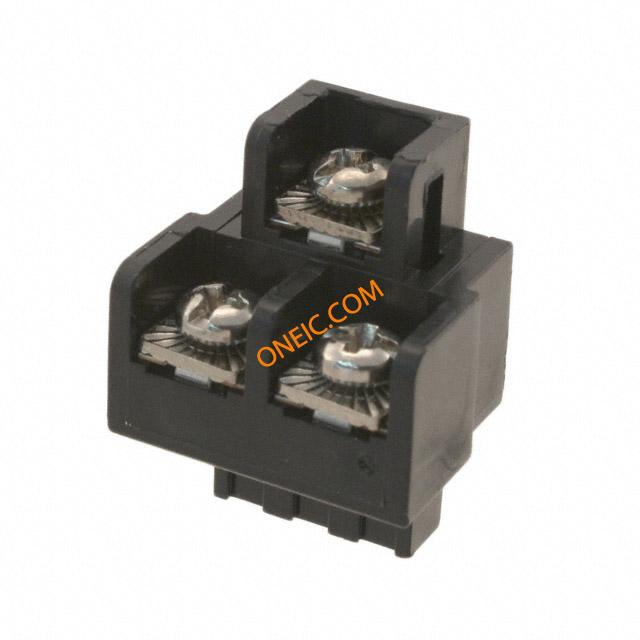

FXPT03200
| 制造商 | |
| 描述 | Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A Barrier Terminal Blocks FLEXIPLUG 5.08MM 3POS BLACK TERM BLOCK PLUG 6POS 5.08MM FlexiPlug,5.08mm,3way Conn; Term Blk; Plug; Screw; 3; 5.08 mm; 26-12 AWG; 15 A; 300 V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 其他名称 | APC1134 |
| 零件号别名 | 308-0156 | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
机械参数
| 颜色 | Black | 深度 | 29.05mm |
| 间距 | 5.08 mm | 宽度 | 17.52mm |
| 长度 | 22.1 mm | 材料（通用） | PPO |
| 包装方式 | Bulk | 导线线规 | 12-26 AWG |
| 端接方式 | Screw | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 安装样式 | Through Hole |
| 排数 | 1 | 插头进线方向 | 90° |
| 壳体材料 | Polyphenylene Oxide (PPO) | 端接样式 | Screw |
| 触点数 | 3 | 位数 | 6 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 26-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Non-Wire Side) | 层数 | 2 |
| 每层位数 | 3 | ||
文档与媒体
PDF 文档
