ELFH10250J
| 制造商 | |
| 描述 | VERT HEAD CLOSED ENDS EJECT EARS TERM BLOCK HDR 10POS VERT 5.08MM Pluggable Terminal Blocks Hor Header W/Eject Ears 10pos .2in |
| 分类 |
商业参数
| 其他名称 | APC1157 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
| 绝缘电阻 | 100000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 排针方向 | Vertical | 触点数 | 10 |
| 位数 | 10 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 产品特性 | Ejectors | 层数 | 1 |
| 每层位数 | 10 | ||
文档与媒体
相关型号
ELFP10210
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 15A Pluggable Terminal Blocks 10P R/A Plug .200 TERM BLOCK PLUG 10POS STR 5.08MM
ELFT10250
amphenol pcd
Conn Terminal Block F 10 POS 10.16mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 10P Straight Plug Top Access .200 TERM BLOCK PLUG 10POS 5.08MM

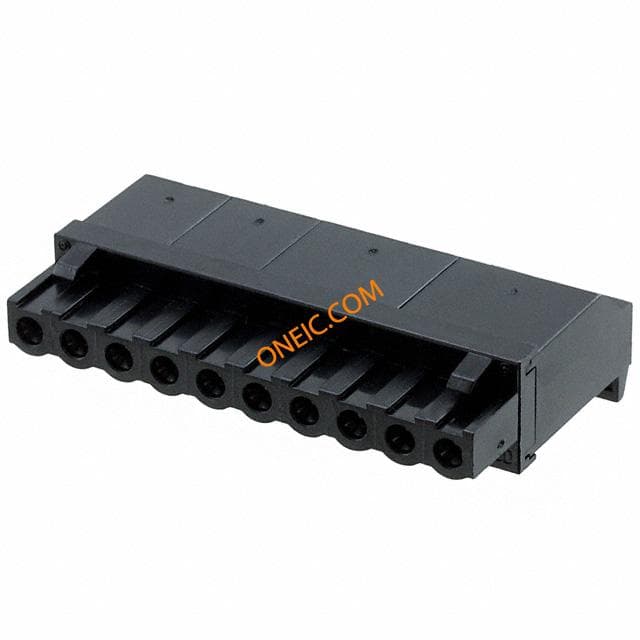

ELFF10230
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 10POS 5.08MM Pluggable Terminal Blocks Plug Top Entry 10 pos .2in Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 15A
ELFF10220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET TERM BLOCK PLUG 10POS 5.08MM
ELFB10280
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR Pluggable Terminal Blocks 10 POS BOARD-MOUNT VERTICAL TERM BLOCK HDR 10POS VERT 5.08MM

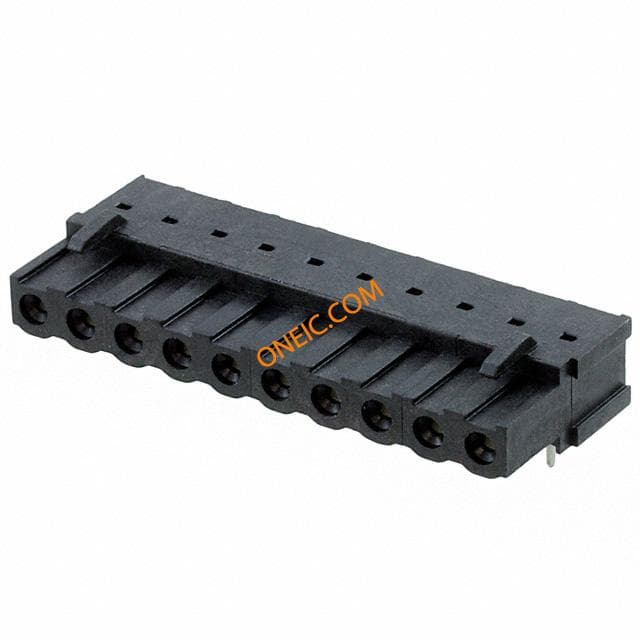

ELFB10230
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR TERM BLOCK HDR 10POS R/A 5.08MM Pluggable Terminal Blocks 10 POS BOARD-MOUNT HORIZONTAL
FXPT10200
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 20POS 5.08MM Barrier Terminal Blocks FLEXIPLUG 5.08MM 10POS BLACK Conn; Term Blk; Plug; Screw; 10; 5.08 mm; 26-12 AWG; 15 A; 300 V
