点击放大查看

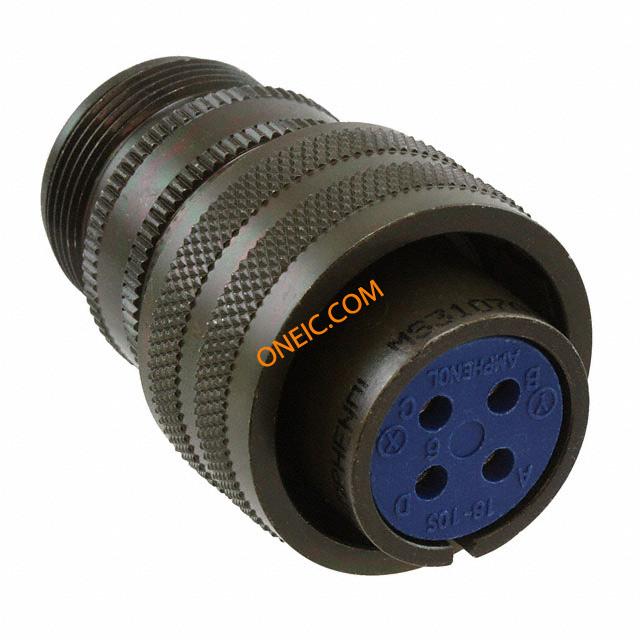

97-3107A-18-10S
| 制造商 | |
| 描述 | Circular MIL Spec Connector 4P Size 18 Jam Nut Socket Recept Solder CONN PLUG 4POS STRGHT SKT SLD connector;metal circ;str plug;QD;size 18;4 #12 solder socket contact;olive drab connector, metal circ, str plug, QD, size 18, 4 #12 solder socket contact, olive drab |
| 分类 |
商业参数
| 其他名称 | 973107A1810S | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Non Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 23A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 12 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | Socket |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Free Hanging |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Quick Disconnect | 插入角度 | 18-1 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 第一触头极性 | Socket (Female) |
| 配接方向 | Threaded | 触点数 | 10 |
| 介电材料 | Diallyl-Phthalate | 位数 | 4 |
| 外壳尺寸-插件 | 18-10 | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 典型触点布局 | 4#12 | ||
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 制造商全称 | 97 Series |
| 产品子类型 | Plugs | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
